NTEP Approved Bench Scale

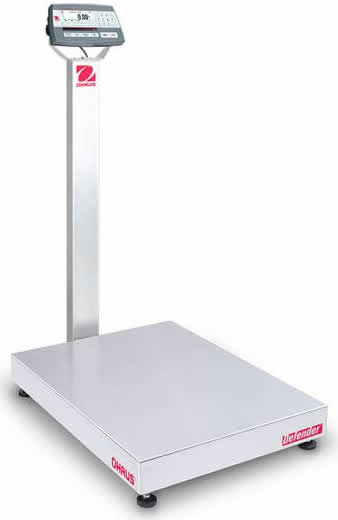

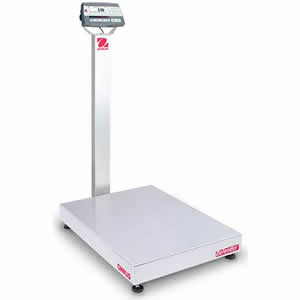

Ohaus D52P500RTV3 Scale for Sale

NTEP Approved D52P500RTV3 is a high capacity bench scale with a large base.  It features a bright dot matrix display with SmarText 3.0 software, 5 application specific softkeys and an alphanumeric keypad for quick use.  MicroSD card holds up to 50,000 SKUs and 1,000 user profiles for maximum production tracking.  ScaleMate software can be used to set-up and maintain SKUs in scale memory.

1,000 lb x 0.05 lb

Platform: 23.6" x 31.5"

NTEP Class III

Price: Lowest Price in Cart

Ground S&H: $325.00

Accessories for Next Generation Defender 5000

In-use Cover Kit, TD52P $25.00
In-use Cover set (10), TD52P $160.00
Micro SD Card, 8G $55.00
Second RS232/RS485/USB Kit, TD52 $155.00
Ethernet Kit $155.00
SF40A Impact Printer with Cable $1,070.00

TO ENSURE BEST POSSIBLE DISCOUNT REQUEST A QUOTE TODAY!!!

Multifunctional Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Standard Features:

  • Indicator Guides The User with On-Screen Prompts
    See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments
    Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility
    Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage
    Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Ohaus Defender 5000 Series
Model Capacity x Readability NTEP Readability Platform Size
D52P12RQR1 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb / 2 g 12" x 12"
D52P25RQR1 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb / 5 g 12" x 12"
D52P50RQR1 100 lb x 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 12" x 12"
D52P12RTR1 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb / 2 g 12" x 14"
D52P25RTR1 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb / 5 g 12" x 14"
D52P50RTR1 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 12" x 14"
D52P50RQL2 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 18" x 18"
D52P125RQL2 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 18" x 18"
D52P50RTX2 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 18" x 24"
D52P125RTX2 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 18" x 24"
D52P250RTX2 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 18" x 24"
D52P50RQV3 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 24" x 24"
D52P125RQV3 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 24" x 24"
D52P250RQV3 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 24" x 24"
D52P500RQV3 1,000 lb x 0.05 lb
500 kg x 20 g
0.2 lb / 100 g 24" x 24"
D52P125RTV3 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 23.6" x 31.5"
D52P250RTV3 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 23.6" x 31.5"
D52P500RTV3 1,000 lb x 0.05 lb
500 kg x 20 g
0.2 lb / 100 g 23.6" x 31.5"

Defender 5000 D52P500RTV3 Specifications
Capacity x Readability (lb) 1,000 lb x 0.05 lb
Capacity x Readability (kg) 500 kg x 20 g
Max. Displayed Resolution 1: 25,000
Capacity x Readability
(NTEP lb)
1,000 lb x 0.2 lb
Capacity x Readability
(NTEP kg)
500 kg x 100 g
Min APW (g) 1 gram
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52P ABS Indicator
Column 38.6 in. / 980 mm powder-coated steel
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14°F to 104°F / -10°C to 40°C
D52P Scale Dimensions
(B x A x C x D x E x F)
23.6 x 31.5 x 5.2 x 3.5 x 47.4 x 37.9 in
600 x 800 x 132 x 90 x 1203 x 963 mm
Shipping Dimensions
(L × W × H)
45.9 x 30.7 x 9.25 in
1165 x 780 x 235 mm
Approx. Net Weight 103.6 lb / 47 kg
Approx. Shipping Weight 112.4 lb / 51 kg
Indicator Construction ABS plastic
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232
Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional)
Battery Life 20 hours continuous use
Calibration Zero, Span or 3 point-Linear
Warranty 1 Year Manufacturer's Warranty
