HomeWashdown ScalesOhaus › Defender 6000 i-D61XWE50K1L7
Washdown Scale

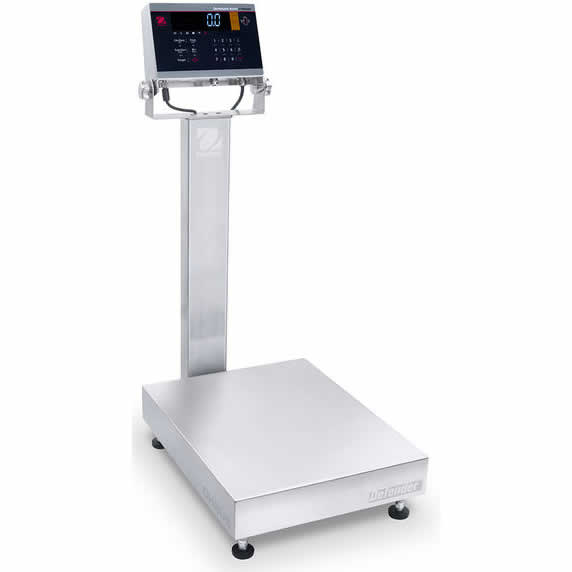

Ohaus i-D61XWE50K1L7 Scale for Sale

Use the Defender 6000 i-D61XWE50K1L7 is some of the harshest conditions knowing the scale was designed with these demanding environments in mind.  Certified for food processing use, the Ohaus Defender has met approval from NTEP, NSF, is USDA-AMS accepted, and supports HACCP compliance.  Hermetically sealed loadcell is IP69K and the scale features 316 stainless steel frame and platform.  Up to 300 library items (stores part number, tare weights, APWs, under/over limits, set points or reference weight) can be shared within different weighing modes.  Up to 100 user IDs can be stored for secure user access and traceability.

100 lb x 0.01 lb

Platform: 19.7" x 15.7"

High Pressure Washdown

Price: Lowest Price in Cart

Ground S&H: $120.00

Accessories for Defender 6000XW

30412537 Wi-Fi/Bluetooth Dongle $231.00
30424403 Analog Output kit $167.00
30424404 2nd RS232/RS485/USB Device kit $167.00
30424409 LC Extension Cable, 9 meters $167.00
30424021 Light Tower, 3 Colors, 243mm, IP65 (Requires 30097591) $194.00
30097591 Discrete I/O with Relay (2 In/4 Out) $155.00
30429666 Ethernet kit $167.00
80500552 Cable RS232 $179.00
SF40A Impact Printer with Cable $1,070.00

Advanced IP68/IP69K Washdown Bench Scale
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermeticallysealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.

Standard Features:

  • Library and User Management: Up to 300 library items (stores part number,
    tare weights, APWs, under/over limits, set points or reference weight) can be
    shared within different weighing modes. Up to 100 user IDs can be stored for
    secure user access and traceability. (ONLY i-D61XWE MODELS)
  • Filling: Fill a container to a target weight. 3-color bar matrix displays filling
    status. Connect with Discrete I/O option kit for an auto-filling system. (ONLY i-D61XWE MODELS)
  • Defender 6000 stands up to harsh cleaning in processing and packaging environments with IP68 immersion/ IP69K washdown protection, 316 stainless steel construction and hermetically-sealed load cell.
  • Durable Defender 6000 is NSF certified, supporting HACCP systems with a 316 stainless steel base and sturdy indicator providing corrosion protection in food, chemical processing, and packaging.
  • Versatile scales include fast weight display and multiple software modes to meet food, chemical processing, and packaging needs.
  • Defender 6000 is designed for simple connectivity in a variety of application settings.

Ohaus Defender 6000 Series - Extreme Washdown Bench Scales
Model NTEP Cap x Read Indicator Pan Size
i-D61XWE5K1S6 10 lb x 0.002 lb
5 kg x 1 g
Stainless Steel 9.8" x 9.8"
i-D61XWE12K1R6 25 lb x 0.005 lb
12.5 kg x 5 g
Stainless Steel 11.8" x 11.8"
i-D61XWE25K1R6 50 lb x 0.01 lb
25 kg x 5 g
Stainless Steel 11.8" x 11.8"
i-D61XWE50K1L7 100 lb x 0.02 lb
50 kg x 10 g
Stainless Steel 19.7" x 15.7"
i-D61XWE150K1L7 300 lb x 0.1 lb
150 kg x 50 g
Stainless Steel 19.7" x 15.7"
i-D61PW5K1S6 10 lb x 0.002 lb
5 kg x 1 g
Polycarbonate Plastic 9.8" x 9.8"
i-D61PW12K1R6 25 lb x 0.005 lb
12.5 kg x 5 g
Polycarbonate Plastic 11.8" x 11.8"
i-D61PW25K1R6 50 lb x 0.01 lb
25 kg x 5 g
Polycarbonate Plastic 11.8" x 11.8"
i-D61PW50K1L7 100 lb x 0.02 lb
50 kg x 10 g
Polycarbonate Plastic 19.7" x 15.7"
i-D61PW150K1L7 300 lb x 0.1 lb
150 kg x 50 g
Polycarbonate Plastic 19.7" x 15.7"

Defender 6000 i-D61XWE50K1L7 Specifications
Capacity x Readability (lb) 100 lb x 0.01 lb
Capacity x Readability (kg) 50 kg x 5 g
Max. Displayed Resolution 1:10,000
Capacity x Readability
(NTEP lb)
100 lb x 0.02 lb
Capacity x Readability
(NTEP kg)
50 kg x 10 g
Max Certified Resolution 1:5,000
Linearity/Repeatability ± 2d
Indicator i-DT61XWE
Column 26.4 in / 670 mm 316 stainless steel
Base Construction 316 stainless steel removable weighing platform with 316 stainless steel frame, hermetically sealed IP68/ IP69K stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14 °F to 104 °F / -10 °C to 40 °C
Scale Dimensions
19.7 x 15.7 x 5.4 x 3.1 x 36.6 x 26 in
500 x 400 x 137 x 80 x 929 x 660 mm
Shipping Dimensions
(L × W × H)
39.4 x 27.2 x 9.8 in
1000 x 690 x 250 mm
Approx. Net Weight 48.5 lb / 22 kg
Approx. Shipping Weight 55.1 lb / 25 kg
Indicator Construction 316 Stainless steel housing, 316 stainless steel bracket
Indicator Protection IP68 immersion / IP69K washdown
Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce
Application Modes Weighing, Checkweighing, Percent Weighing, Dynamic Weighing/Display Hold, Counting with APW optimization, Checkcounting, Filling (i-DT61XWE only)
Display 6-digit, 7-segment white LED, 20 mm / 0.8 in high digits
Check Indicator 3 color (red, green, orange) 8x16 dot matrix LED
Keyboard 6 function keys + 12 numeric capacitive keypad
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 and USB Host included Optional Ethernet, WiFi/Bluetooth, 2nd RS232/ RS485/USB Device, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or external power bank
Battery Life Depends on the capacity of power bank used (Up to 55 hours with 20,000mAh power bank)
Calibration Zero, Span or 3 point-Linear
