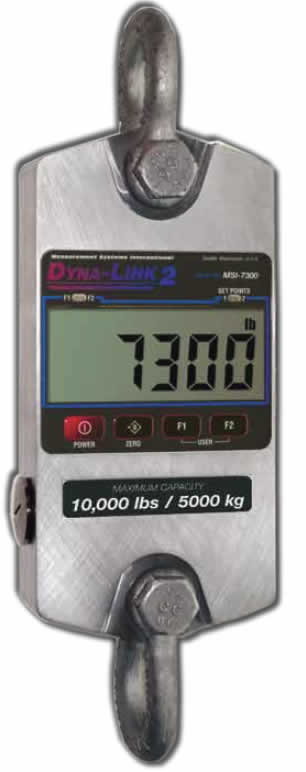

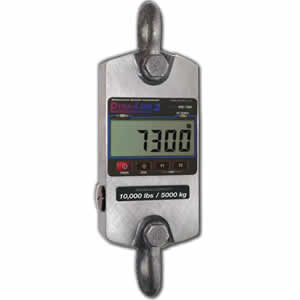

7300-1000 Scale

Enlarge 7300-1000

MSI 7300-1000 Scale for Sale

MSI Dyna-Link 2 is constructed from high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing.  200 percent safety overload protection keeps the dynamometer safe from most overloads and even higher before it snaps.  2 C-cell batteries will operate the MSI 7300-1000 for up to 200 hours.

Regular Price: $1,325.25

Ground S&H: Free Shipping to USA (excludes AK and HI)

Capacity x Resolution: 1,000 lb x 0.5 lb






Shackle Anchor 3.25 Ton Bolt Type $80.00
RF Module (Required for MSI-8000 Connectivity) $175.00
Transport Case for 500-10K lb $125.00
RS232 Serial Cable for MSI-7300 $125.00
13 Ft. RS232 Serial Cable for MSI-8000 Remote Display $95.00
MSI-8000 Remote Indicator (Requires RF Modem Install) $1,095.00
MSI-8000 Universal Battery Charger 115/230 VAC $115.00

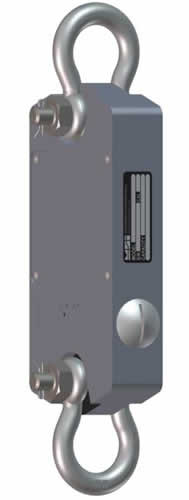

Dyna Link 2 DynamometerDyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.

Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection.

Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF Remote Display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30 m). An integrated serial port offers interface capabilities with data collection devices.

Standard Features:

  • Tension Dynamometer with 5 digit 1.22" LCD Display
  • NEMA4/IP65 enclosure for use in all environments
  • 200% safe loading, 500% ultimate loading integrity
  • 2 each "D" alkaline batteries for capacities 25,000 lb and up
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (7:1 Ultimate Safety Factor)
  • MADE IN THE USA
MSI Dyna-Link 2 - 7300 1000LB Tension Dynamometer
Capacity x Resolution (lb) 1,000 lb x 0.5 lb
Capacity x Resolution (kg) 500 kg x 0.2 kg
Units of Measure Pounds, Kilograms, Kilonewtons, Tons, Metric Tons
Accuracy 0.1% of rated capacity
Enclosure NEMA 4, IP65, anodized corrosion-resistant finish
Material 2024 aircraft grade aluminum
Safe Overload 200% Safe / 700% Ultimate* (except where noted)
Functions On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare,
Auto-Off, Motion Filter
Display Five-digit, 1.22 in (31 mm) LCD
LED Annunciators Function 1, Function 2, Setpoint 1, Setpoint 2
LCD Annunciators Net, Center of Zero, Stable, Battery Test, Peak Hold, Total
Operating Time From 150 to 300 hours in typical use depending on unit capacity and battery configuration. Less with optional RF modem link installed
Operating Temperature -4°F to 130°F (-20°C to 54°C)
Filtering OFF, LO, HI selectable
Data Output Serial RS-232
Power 2 each “C” alkaline batteries for capacities up to 10,000 lb
Shipping Weight 8 lb
