VN31P5000X Scale

Enlarge VN31P5000X

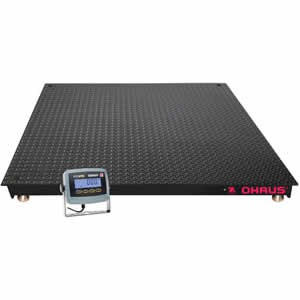

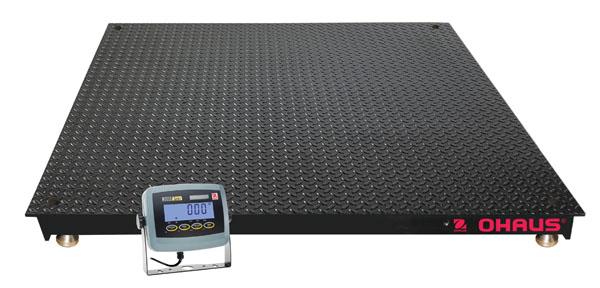

Ohaus VN31P5000X Scale for Sale

Ohaus floor scale has a large square platform for accommodating pallets, crates and drums in loads up to 5,000 pounds.  VN31P5000X features an affordable design suitable for dry-use weighing with a carbon steel base and ABS constructed indicator.

Regular Price: $1,495.80

Ground S&H: $300.00

Capacity x Resolution: 5,000 lb x 1 lb


VN31P5000X industrial floor scales are legal for trade and suitable for dry use in warehouses. Similar to the 4 ft x 4 ft VN31P5000L except it has a larger 5 ft x 5 ft platform. Available with ramps and mounting feet, the OHAUS VN Series offers a unique combination of value, quality and dependability.

OHAUS VN Series of floor scales are the value solution to your dry weighing needs in industrial and commercial applications.  Its high-quality construction is designed to minimize distortion under heavy loads, and ensures years of dependable use.  NTEP certification ensures consistent weighing performance.

Standard Features:

  • Legal for Trade

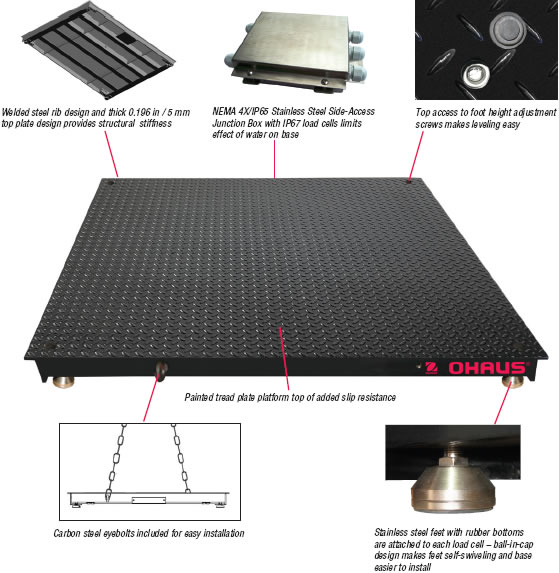

  • 5mm / 0.196” thick top plate with raised cross-hatch surface for added slip resistance
  • Painted carbon steel 5’ X 5’ 5,000 lb. weighing platform (model VN31P5000X)
  • Four NTEP-certified shear beam load cells protected to IP67
  • Side-access NEMA 4X / IP65 dust and water protected stainless steel junction box
  • Four self-swiveling ball-in-cap feet, with top-access leveling adjustment for easy installation
  • Internal structural bracing ensures platform rigidity
  • Carbon steel eyebolts attached to side of platform for easy lifting and positioning
  • Indicator includes backlit LCD display with 1” high digits, lb and kg weighing units, an 80-hour internal rechargeable battery and included AC adapter, counting mode for inventory applications and a wall bracket for easy mounting.

Ohaus T31P Indicator Features:

  • Large 1” high digit backlit LCD display quickly displays results in a choice of lb or kg. The power-on unit is selectable, and either the lb or kg unit can be turned off for easier use.
  • Includes Counting Mode with a minimum Average Piece Weight of 1d, selectable sample sizes, automatic retention of last sample size used and Average Piece Weight. For installations where Counting Mode is not required, the parts counting software can be selected off.
  • Built-in bidirectional RS232C interface for printing or connection to PC. Printing intervals can be set to manual (using Print key), continuous, on stable weight, or an interval between 1 second and 60 minutes.
  • Geographical gravity correction software allows quick adjustment of calibration to local conditions without need for recalibration of the VN Floor Scale. All VN Floor Scales are factory calibrated and must be set to match local gravity situation.
  • Durable mechanical switch keypad with dedicated Print, Tare and Function keys for quick and easy operation
  • Powered using either the included AC adapter or the included 100-hour internal rechargeable battery pack.
  • Reversible front which allows installation with the floor platform and power connections exiting from the top or the bottom of the indicator housing.
  • T31P indicator includes four wall mounting holes for screw mounting to bench or wall – it can also be wall or table mounted using the included wall mount bracket for full tilt adjustment of the indicator.
  • Software lockouts of menu operations for setup, readout, mode, unit and print menu options. In NTEP certified operation, certain menu options are automatically locked-out.
  • 1 Year Limited Warranty

Ohaus - VN31P5000L Digital Floor Scale
Capacity (metric) 2500 kg
Readability (metric) 0.5 kg
Capacity (avoirdupois) 5000 lb
Readability (avoirdupois) 1 lb
Housing 5 mm / 0.196 in painted carbon steel platform with ABS housed indicator
NTEP Resolution 1:5,000
Maximum Safe Static Load 160% of maximum capacity (central load)
Load Cell - Rated IP 67 (kg) 4 x 2,500 lb nickel-plated alloy steel shear beam IP67 protected
Platform Construction Painted Carbon Steel
Junction Box Material, Protection NEMA 4X / IP65, 304 stainless steel, with 16.5 ft / 3 m long indicator cable
Feet 4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leveling
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Indicator included T31P
Platform Size 5 ft x 5 ft x 3.5 in
Weighing units lb or kg
Weighing modes Weighing, Counting*
Display 1 in / 25 mm high, 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button mechanical switches
Stabilization time Within 2 seconds
Auto Shut-off Off, 0.5, 1 or 3rd
Zeroing range 0%, 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface RS232C, bidirectional
Power 9VDC, 0.5A AC adapter or internal rechargeable sealed lead acid battery (100-hour typical operation with full charge) - both included
Shipping dimensions (WxDxH) 64.6" x 53" x 13.4"
Net Weight 282 lb
Shipping Weight 333 lb
