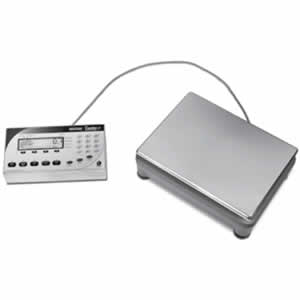

CP-10 Scale

Rice Lake CP-10 Scale for Sale

For large scale counting operations, there is only one parts counter that fits the bill.  Rice Lake CP-10 provides the most advanced functionality available for inventory management operations.  Counterpart indicator provides more ways to integrate peripherals ranging from, scanners, printers, computers or even add another Digi base for including multiple levels of precision if your parts vary greatly in size.

Regular Price: $1,295.00

Ground S&H: $50.00

Capacity x Resolution: 10 lb x 0.001 lb

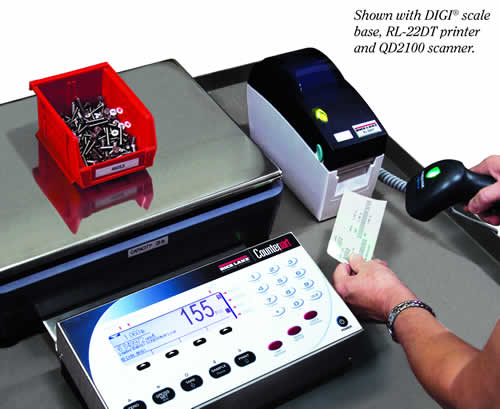

Rice Lake CounterpartRice Lake Counterpart configured to work with Digi S-XL single platform provides more options, more memory and more connectivity configurations. When you select the complete setup with the options shown above, you basically will connect the Rice Lake Counterpart indicator to the QD2100 bar code scanner which can work in conjunction with the WeighVault inventory tracking software. When connected to a computer, memory is dependent on the computer to exceed the advertised 150 item memory.

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size.

Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method  to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

Digi BaseStandard Features:

  • AC operated (battery operation is option)
  • LCD graphical display transmissive for indoor viewing
  • Lb/kg (oz/g) weight display conversion
  • Single or dual channel models with serial scale input
  • Four setpoint outputs for automated counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet
  • Scanner input (RS-232)
  • PC software utility (Revolution) for setup
  • 150 item memory
  • Stainless steel platter
  • Single-point strain gauge load cell
  • Adjustable legs
  • Leveling bubble
  • Maintains 0.02% accuracy through full range
  • 2 Year Manufacturer's Limited Warranty
Rice Lake Counterpart Indicator with Digi S-XL Base
Capacity x Resolution (lb) 10 lb x 0.001 lb
Capacity x Resolution (kg) 5 kg x 0.0005 kg
Units of Measure Pounds, Grams, Kilograms, Ounces
Weight Display Resolution Up to 100,000 graduations
Counting Resolution 1/1,000,000
Display Viewing Area: 240 x 64 pixels, transmissive VGA Liquid Crystal Display with adjustable contrast
Keyboard 24 buttons, full keypad-alpha numeric
Interface

Two RS-232 ports supports up to 115,200 bps / 20 mA
Ethernet port
Setpoint output
Dual Channel is Optional

Status Ennunciators PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero
Indicator Dimensions 12.25" x 6.25" x 4.0" / 311.15 x 158.75 x 101.6 mm
Platform Dimensions 11" x 16" / 279.4 x 406.4 mm
Operating Temperature 10°F to 104°F (0°C-40°C)
Operating Humidity 85%
Power Source Input: 100-240 VAC, 47-63 Hz, 5 watts, US power cord Output: 9-12V, 1.5 A max.
Inventory Management

Rice Lake Weighing Systems - Counterpart Scale Packages
Model Cap x Res (Pounds) Cap x Res (Kilograms) Platform Size (Inches)
CP-5 5 lb x 0.0005 lb 2 kg x 0.0002 kg 9" x 12"
CP-10 10 lb x 0.001 lb 5 kg x 0.0005 kg 11" x 16"
CP-25 25 lb x 0.002 lb 10 kg x 0.001 kg 11" x 16"
CP-50 50 lb x 0.005 lb 20 kg x 0.002 kg 11" x 16"
CP-100 100 lb x 0.01 lb 50 kg x 0.005 kg 11" x 16"
