DC-788 2LB Scale

Enlarge DC-788 2LB

Digi DC-788 2LB Scale for Sale

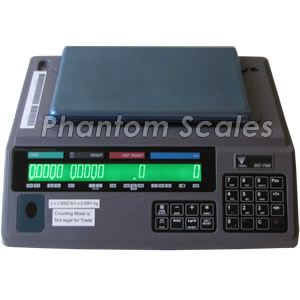

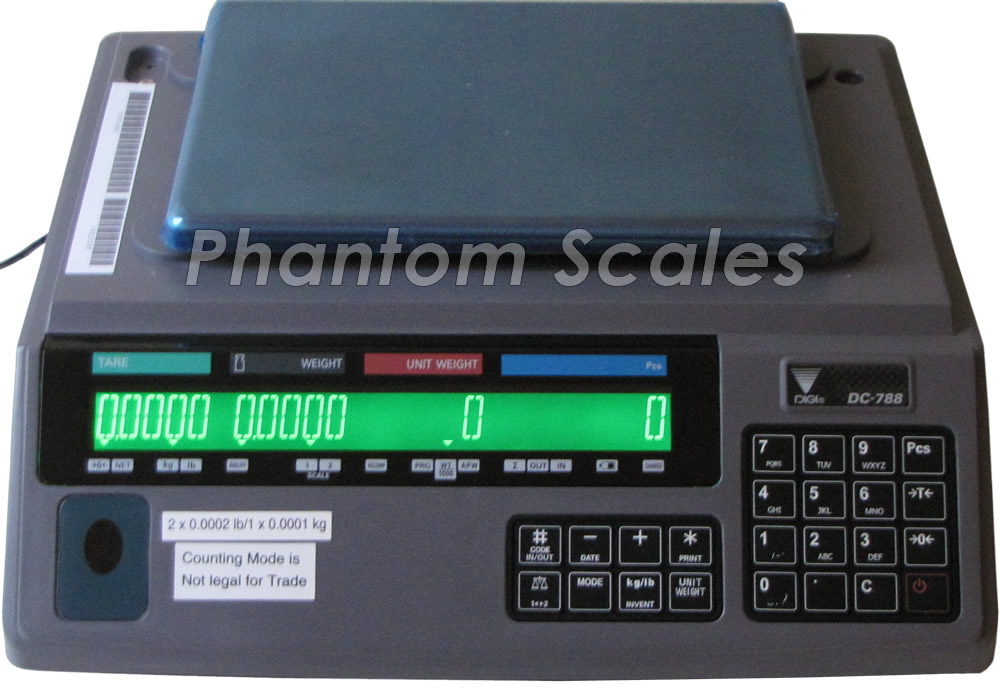

The dual channel Digi DC-788 Series is an affordable dual channel parts counting scale.  100 item memory makes regularly counted items quick and easy to count.  This particular unit was returned to us because the customer needed a higher capacity scale.  It still has the film covering the platform as shown in the image.

Regular Price: $680.00

Ground S&H: $25.00

Capacity x Resolution: 2 lb x 0.0002 lb







When Accuracy Counts...

The DIGI DC-788 exceeds all expectations of a counting scale—at a price point that can’t be beat! With a rechargeable battery that provides up to 24 hours of continuous usage, this durable counting scale offers tremendous power and virtually unlimited flexibility. Its bright LCD display can be seen from virtually any angle and is highly visible in low light areas.

Standard Features:

  • Counting resolution of 1/1,000,000
  • Auto recomputing function
  • Negative sampling and counting (count out of a full container)
  • Vivid, bright LCD display
  • Simultaneously weight display, unit weight, tare, and quantity
  • Net/gross weight display
  • Lb/kg weight display conversion
  • Full-duplex RS-232 output to PC or printer
  • AC or rechargeable battery operation* (battery optional)
  • Choice of unit weight per thousand or average piece weight
  • Remote scale capability

Digi DC-788 2LB Counting Scale
Capacity x Resolution (LB) 2 lb x 0.0002 lb
Capacity x Resolution (KG) 1 kg x 0.0001 kg
Internal Count Resolution 1/1,000,000
Display Resolution 5,000; 10,000 available for counting only
Display LCD display showing: Weight: five-digits Unit Weight: five-digits Quantity: seven-digits Tare: five-digits
Power Source 115 VAC (60 Hz), optional battery 6V, 5.0Ah
Input Sensitivity 0.4–4.0 mV/V
Load Cell Excitation 12 VDC
Load Cell Input Connector Amphenol 14-pin
Interfaces RS-232, DB-9F connection
Number of Channels One remote scale (1-350Ω load cell)
Memory 100 items
Printer Capability Zebra® LP/TLP Series Epson TM-U220 tape Star® SP512 tape Epson TM-U295 ticket
Optional Battery 24 hours of continuous usage
Charge Time 8-10 hours
Zero Adjust Range ± 127% full scale
Operating Temperature 14° F to 104° C (-10° F to 40° C)
Platform Dimensions 7" x 10"
Scale Dimensions 14" W x 13.75" D x 4.5" H (354 mm W x 349 mm D x 115 mm H)
Shipping Weight 15 lb (7 kg)
