320 g x 0.001 g
Platform: 4.65" Diameter
NTEP Class II
Price: $895.00
Ground S&H: $50.00
Standard Features:
|

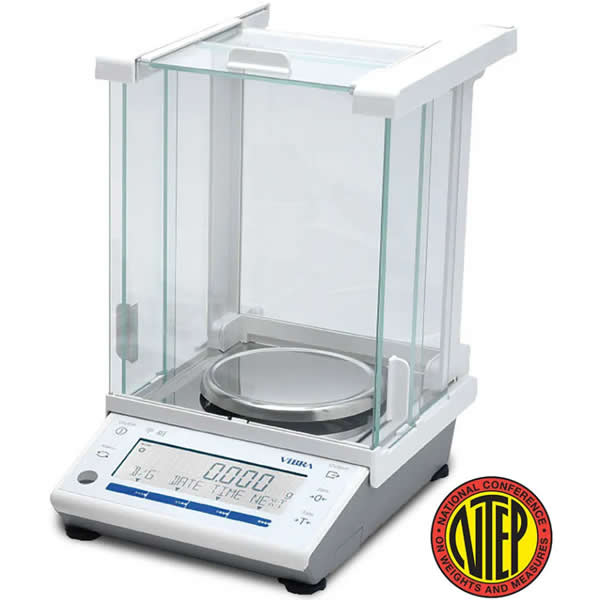

| Intell Lab ALE Series - LFT Tuning Fork Balances | |
|---|---|
| Model | Certified Capacity x Readability |
| ALE-223 | 220 g x 0.01 g |
| ALE-323 | 320 g x 0.01 g |
| ALE-623 | 620 g x 0.01 g |
| ALE-323 Specifications | |
|---|---|
| Capacity | 320 g |
| Readability | 0.001 g, NTEP 0.01 g CLASS II |
| Calibration | External calibration |
| Repeatability (Std. Dev.) | ± 0.001 g |
| Linearity | ±.0.001 g |
| Stabilization Time | ≤ 1.6 seconds |
| Weighing Units | g, ct, lb, oz t, GN, dwt, mommes, mg, oz |
| Functions | Specific Gravity, Parts Counting (NTEP for pill counting only), %, Density, Checkweighing (limit function), Animal Weighing, GLP Compliant Formulation, Statistics, Accumulation, Below Balance Weighing |
| Tare Range | To capacity by 100% subtraction |
| Power Source | Input: AC/DC Adapter, 100 - 240 VAC, 50 - 60 Hz, Output: 6 VDC, Dry Cell Batteries (4 x AA, Not Included) |
| Construction | Die cast aluminum base, ABS housing, Stainless Steel Platter |
| Display | Large, easy to read 5/8" (16 mm) LCD display with backlight and icons |
| Pan Size | 118 mm, 4.65" diameter |
| Draft Shield Internal Dimensions (W x D x H) |
5.9 x 5.9 x 7.87 inches / 150 x 150 x 200 mm |
| Overall Dimensions (W x D x H) | 7 x 9 x 3 inches / 180 x 230 x 75 mm (Not including draft shield) |
| Operating Environment | 41 °F to 95 °F / 5 °C to 35 °C Temperature fluctuation ≤ 2 °C / hour Humidity 50% to 85% RH |
| Connectivity | USB Type B / DB-9 RS232 bi-directional interface |
| Net Weight | 2.86 lb / 1.3 kg |
| Shipping Weight | 6.5 lb / 2.94 kg |
| Options | Ethernet or Relay Contact (only one option per unit), Specific Gravity Measurement Kit, Underweighing Hook, Carrying Case |
| Approvals | NTEP C.o.C. #17-061A1 |
