Legal for Trade Scale

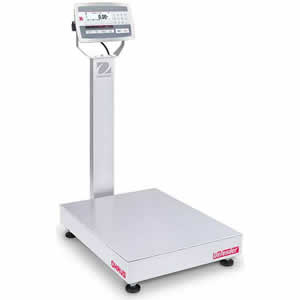

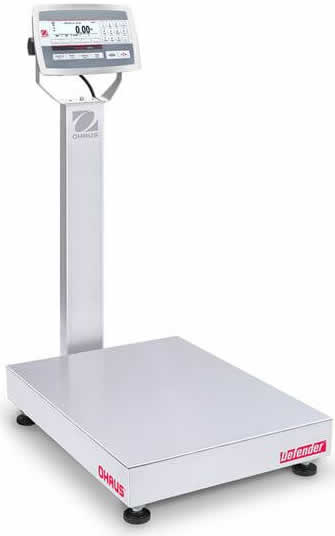

Ohaus D52XW125RTX2 Scale for Sale

Weigh up to 250 pounds on the large rectangular platform with the Ohaus Defender 5000 D52XW125RTX2 legal for trade bench scale.  Its extensive library can store 50,000 items and 1,000 user profiles with 3 different access levels.  Communicate with RS232 or upgrade to add on an additional communication option such as Wifi or Bluetooth.  On-screen prompts and soft keys guide the user through operation of the Defender 5000 scale.

250 lb x 0.01 lb

Platform: 18" x 24"

Stainless Steel Indicator

Price: Lowest Price in Cart

Ground S&H: $325.00

Accessories for Next Generation Defender 5000

In-use Cover Kit, TD52XW $27.00
In-use Cover set (10), TD52XW $215.00
Micro SD Card, 8G $55.00
Second RS232/RS485/USB Kit, TD52 $155.00
Ethernet Kit $155.00
SF40A Impact Printer with Cable $1,070.00

TO ENSURE BEST POSSIBLE DISCOUNT REQUEST A QUOTE TODAY!!!

Multifunctional Bench Scale for Standard Industrial Applications
OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Standard Features:

  • Indicator Guides The User with On-Screen Prompts
    See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments
    Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility
    Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage
    Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
  • Includes T52XW Indicator
    IP68 rated / NEMA 4x rated protection with housing made from 304 stainless steel with sand blasted surface treatment and stainless steel bracket.

Ohaus Defender 5000 Series with TD52XW S.S. Indicator
Model Capacity x Readability NTEP Readability Platform Size
D52XW12RQR1 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb / 2 g 12" x 12"
D52XW25RQR1 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb / 5 g 12" x 12"
D52XW50RQR1 100 lb x 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 12" x 12"
D52XW12RTR1 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb / 2 g 12" x 14"
D52XW25RTR1 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb / 5 g 12" x 14"
D52XW50RTR1 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 12" x 14"
D52XW50RQL2 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 18" x 18"
D52XW125RQL2 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 18" x 18"
D52XW50RTX2 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 18" x 24"
D52XW125RTX2 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 18" x 24"
D52XW250RTX2 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 18" x 24"
D52XW50RQV3 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 24" x 24"
D52XW125RQV3 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 24" x 24"
D52XW250RQV3 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 24" x 24"
D52XW500RQV3 1,000 lb x 0.05 lb
500 kg x 20 g
0.2 lb / 100 g 24" x 24"
D52XW125RTV3 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 23.6" x 31.5"
D52XW250RTV3 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 23.6" x 31.5"
D52XW500RTV3 1,000 lb x 0.05 lb
500 kg x 20 g
0.2 lb / 100 g 23.6" x 31.5"

Defender 5000 D52XW125RTX2 Specifications
Capacity x Readability (lb) 250 lb x 0.01 lb
Capacity x Readability (kg) 125 kg x 5 g
Max. Displayed Resolution 1: 25,000
Capacity x Readability
(NTEP lb)
250 lb x 0.05 lb
Capacity x Readability
(NTEP kg)
125 kg x 20 g
Min APW (g) 0.25 g
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52XW Stainless Steel Indicator
Column 26.8 in. / 680 mm powder-coated steel
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14 °F to 104 °F / -10 °C to 40 °C
D52XW Scale Dimensions
(B x A x C x D x E x F)
18 x 24 x 5.1 x 3.5 x 36.8 x 30.5 in
457 x 610 x 130 x 90 x 934 x 775 mm
Shipping Dimensions
(L × W × H)
39.1 x 26.8 x 9.25 in
994 x 680 x 235 mm
Approx. Net Weight 61.7 lb / 28 kg
Approx. Shipping Weight 68.3 lb / 31 kg
Indicator Construction 304 stainless steel with sand blasting surface treatment
Protection IP68 / NEMA 4X
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional)
Battery Life 20 hours continuous use
Calibration Zero, Span or 3 point-Linear
Warranty 1 Year Manufacturer's Warranty
