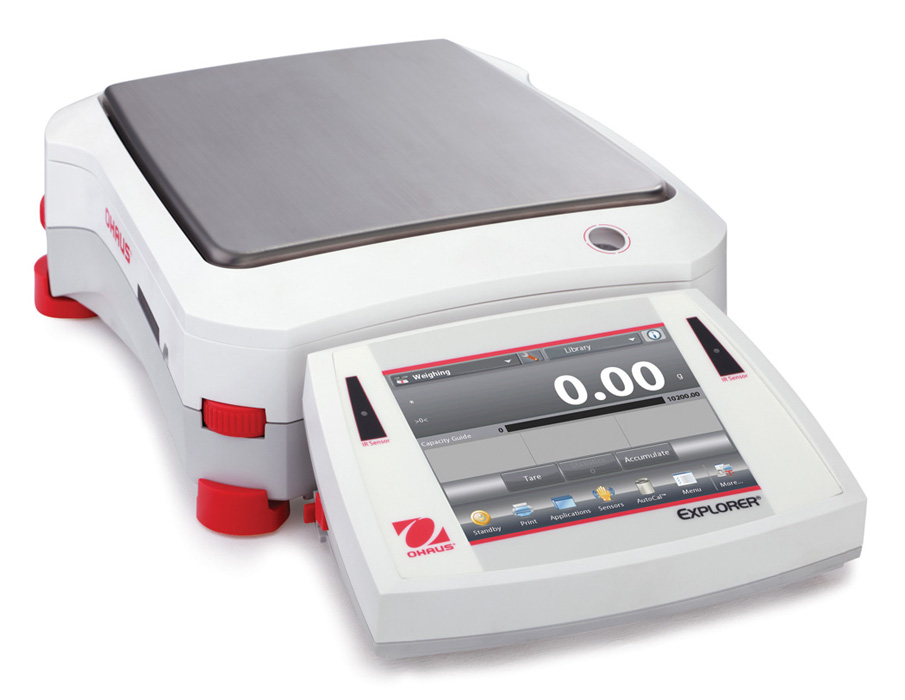

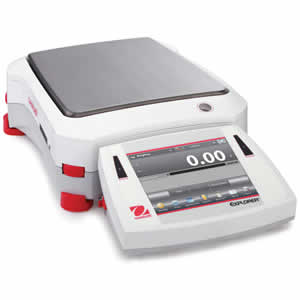

EX10202N Balance

Enlarge EX10202N

Ohaus EX10202N Balance for Sale

Promo Code: OHAUSDEALS for 10% off
Pharmaceutical balances from the Ohaus Explorer NTEP Series have become the ultimate choice for pharmacists whose applications range from extemporaneous drug compounding to prescription filling using the pill counting function.  User intuitive design and graphical display interface ensures ease of use while the end-user is prompted through applications while making each function simple to navigate to.

Regular Price: $4,097.00

Ground S&H: Free Shipping to USA (excludes AK and HI)

Capacity x Resolution: 10,200 g x 0.1 g







Accessories for Ohaus Explorer

Security Device for Explorer $211.00
USB Interface Cable $176.00
Ethernet Kit $176.00
Foot Switch Kit $168.00
SF40A Impact Printer with Cable $902.00

Product Manuals
Explorer User Manual Ohaus Explorer User Manual
Ohaus Explorer

Explorer® features a user friendly application-based graphical software platform in concert with a redesigned antistatic draftshield, enhanced weighing performance, and a flexible modular display that detaches from the weighing base. Ingeniously striking a balance between cutting-edge technology and functional design, the Explorer delivers accurate performance, with the end user in mind to improve lab efficiency.

The OHAUS Explorer’s advanced applications simplify even the most complex laboratory measurements. Whether it’s determining the difference between initial and residual weights or calculating the density of solids and liquids, Explorer eliminates the need for time consuming manual calculations and data logging. The high resolution display and innovative user interface make balance setup and application use effortless.

Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. SmarText™ 2.0 is OHAUS’ easy-to-use graphical software featuring 14 applications, QWERTY and numeric keypads, and below-minimum weight indication.

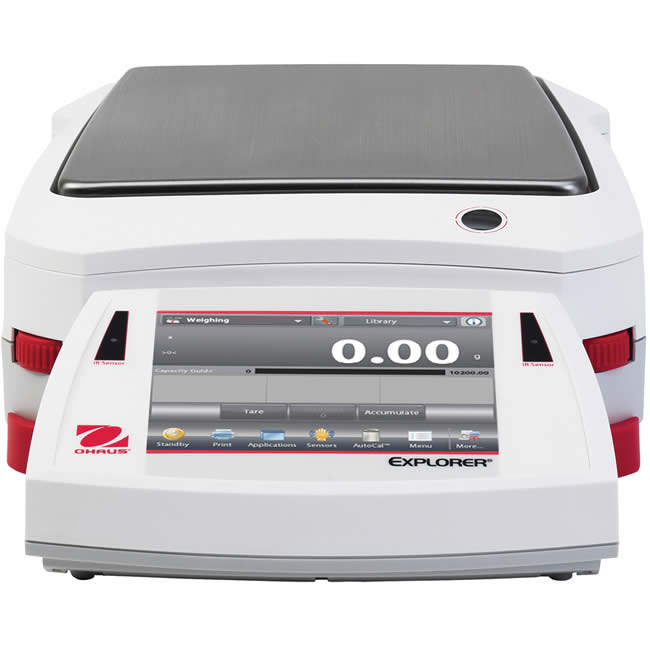

Display Rear

Explorer features four touchless sensors for hands-free operation of print, calibration, tare, and other selectable functions. AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily.

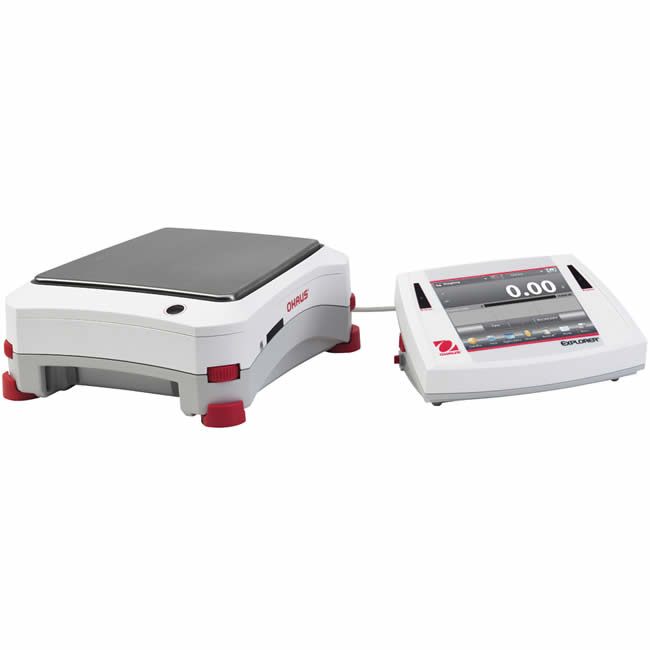

Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use. Explorer’s modular design features a color touch display that can be separated from the weighing base.

Level BubbleStandard Features:
  • Touchless Sensors - Hands-free operation
  • Fast stabilization time
  • Optimized linearity and repeatability specifications
  • Superior vibration filtering
  • Color VGA display with icons for simple menu navigation
  • 14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings
  • Minimum Weight capability with visual warning feature
  • QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
  • User Manager with administrator capability
  • Library function to store and recall customized applications
  • Alternate RS232 command feature adapts the balance to existing data acquisition software
  • External input for zero, tare or print operations via the external foot switch accessory
  • Audible and visual feedback for button presses as well as the indication of the check weighing status
Explorer EX10202


Ohaus Balance Specifications
Capacity x Resolution (g) 10,200 g x 0.01 g
NTEP Approved Resolution 0.1 g
Repeatability ± 0.01 g
Linearity ± 0.02 g
Weighing units Gram, Milligram, Kilogram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Custom Units
Application Modes: Weighing, Percent Weighing, Dynamic Weighing, Totalization, Differential Weighing, Peak Hold, Parts Counting, Pipette Adjustment, Check Weighing, Filling, Formulation, Density Determination, Ingredient Costing, SQC
Display Full-color VGA graphic display, 4-wire resistive touch screen
Display Size 5.7 in / 145 mm (diagonal)
Display Housing Dimensions 7.7 x 3.5 x 6.0 in / 195 x 90 x 154 mm
Base Housing Dimensions 9.1 x 3.9 x 15.5 in / 230 x 98 x 393 mm
Shipping Dimensions 21 x 15 x 12 in / 55 x 38.5 x 29.1 cm
Tare Range To capacity by subtraction
Stabilization time ≤1 second
Calibration AutoCal™ on Δ1.5°C temperature change, 11 hours, and external calibration
Communication RS232, USB
Platform Size 7.5 x 7.9 in / 190 x 200 mm
Operating Temperature 50°F (10°C) to 86°F (30°C)
Operating Humidity Range 15% to 80% at 87.8°F (31°C) decreasing linearly to 50% at 40°C, non-condensing
Storage Conditions -14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing
Sensor Type Electromagnetic Force Compensation
Power AC adapter input: 100-240 VAC 0.6A 50-60Hz
NET Weight 11 lb / 5 kg
Shipping Weight 16.3 lb / 7.4 kg
Explorer Display Features

The most Intelligent and intuitive balance to ever come from the mind of Ohaus, the all-new Explorer Series will improve efficiency, productivity and throughput by providing accurate results within seconds. Offering lab and industrial professionals a premium balance at an affordable price, Explorer is a revolutionary shift in the way users interact with and operate weighing equipment.

Key features include Ohaus' easy-to-use SmarText 2.0 graphical software that features 14 applications with customization capabilities, virtual QWERTY and numeric keypads, and below minimum weight indication. Explorer boasts four touchless sensors for 'hands free' operation, eliminating sample residue transfer and minimizing contamination.

Ohaus Explorer's leveling assistance and instructional messaging will guide you through quick out-of-the-box setup and use to easily integrate into weighing environments.

Rear Explorer Precision
Ohaus Explorer NTEP Series - Pharmaceutical Balances
Model Cap x Res Non-NTEP Cap x Res NTEP Price
EX224N 220 g x 0.0001 g 220 g x 0.001 g $3,842.85
EX324N 320 g x 0.0001 g 320 g x 0.001 g $4,482.90
EX423N 420 g x 0.001 g 420 g x 0.01 g $2,744.65
EX1103N 1,100 g x 0.001 g 1,100 g x 0.01 g $3,751.05
EX4202N 4,200 g x 0.01 g 4,200 g x 0.1 g $2,881.50
EX10201N 10,200 x 0.1 g 10,200 x 0.1 g $2,927.40
EX10202N 10,200 x 0.01 g 10,200 x 0.1 g $3,751.05
