120 g x 0.01 mg / 220 g x 0.1 mg
Platform: 3.1" Diameter
Auto Internal Cal.
Price: Lowest Price in Cart
Ground S&H: $50.00
|
Standard Features:
|
| Ohaus Explorer Semi Micro Series | ||||
|---|---|---|---|---|
| Model | Capacity x Readability | Pan Size | Calibration | Regular Price |
| EX125D | 52 g x 0.00001 g 120 g x 0.0001 g |
Ø 3.15" | AutoCal™ | $4,849.25 |
| EX125 | 120 g x 0.00001 g | Ø 3.15" | AutoCal™ | $6,047.75 |
| EX225D | 120 g x 0.00001 g 220 g x 0.0001 g |
Ø 3.15" | AutoCal™ | $6,188.00 |

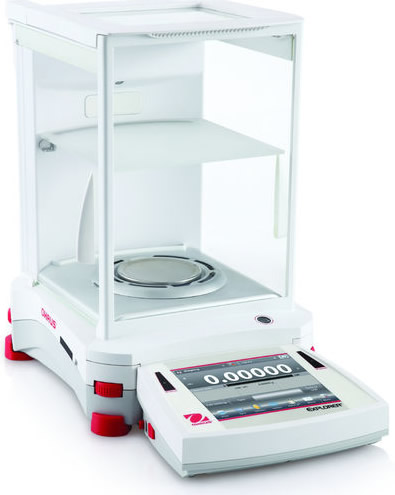

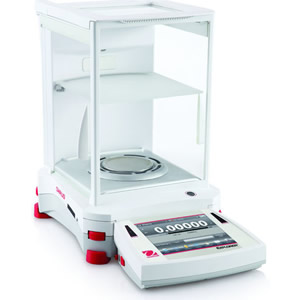

| Explorer EX225D Semi Micro Balance Specifications | |
|---|---|
| Capacity | 120 g / 220 g |
| Readability | 0.01 mg / 0.1 mg |
| Repeatability (20 g) Std Dev. | 0.015 mg |
| Repeatability (100 g) Std Dev. | 0.02 mg / 0.1 mg |
| Linearity | ± 0.1 mg |
| Application Modes | Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing, Filling, Totalization, Formulation, Differential Weighing, Peak Hold, Density Determination, Pipette Adjustment, Statistical Quality Control |
| Weighing units | g, mg, kg, ct ,gn, oz, ozt, lb, dwt, N, mom, tical, msg, tola, baht, Hong Kong Tael, Singapore Tael, Taiwan Tael, Custom Units 1, Custom Unit 2, Custom Unit 3 |
| Min-Weight (typical) | 20.0 mg, fine range (USP, u=0.10%, k=2) |
| Min-Weight (optimal) | 9.0 mg, fine range (USP, u=0.10%, k=2) SRP≤0.41d** |
| Display | 5.7 in / 14.5 cm (diagonal) Full-Color touch screen |
| Interface | Standard connectivity: 1 USB host, 1 USB device, 1 RS232 Optional connectivity: 2nd RS232, Ethernet |
| Draft Shield | No AutoDoor - See EX225D/AD for that feature |
| Platform Size | Ø 3.15" 80 mm |
| Span Calibration Points | 50 g, 100 g |
| Sensitivity Temp. Drift | 0.50 ppm / °C |
| Stabilization time | 0.1 mg: ≤3 second, 0.01 mg: ≤8 second |
| Dimensions WxHxD | 9" x 15.5" x 13.8" / 230 x 393 x 350 mm |
| Shipping dimensions | 24.9" x 25.2" x 18.4" / 632 x 640 x 467 mm |
| Power Supply | AC Adapter Input: 100 – 240 VAC 0.6 A 50/60 Hz, AC Adapter Output: 12 VDC 1.5 A |
| Operating Temperature Range | 10°C – 30°C, 85% RH, non-condensing |
| Storage temperature | -10°C – 60°C at 10% to 90% RH, non-condensing |
| Sensor Type | Electromagnetic Force Compensation |
| Net Weight | 15.4 lb / 7 kg |
| Shipping Weight | 26.5 lb / 12 kg |
| Warranty | 2 Year Manufacturer's Limited Warranty |
