Electronic Platform Scale

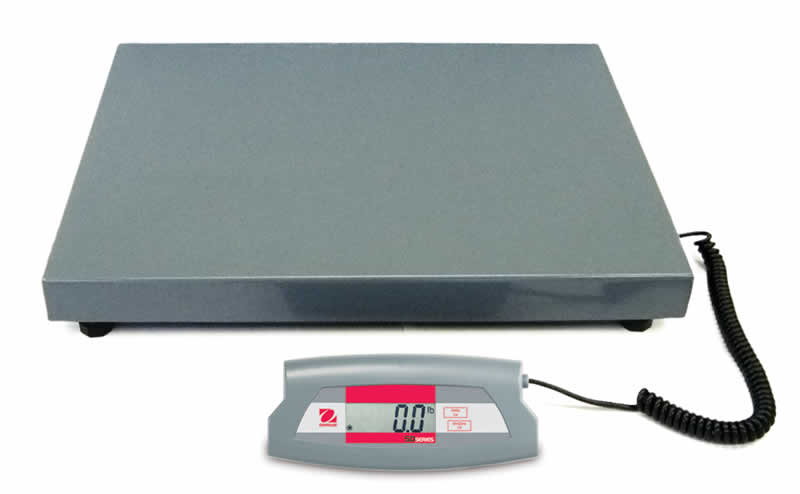

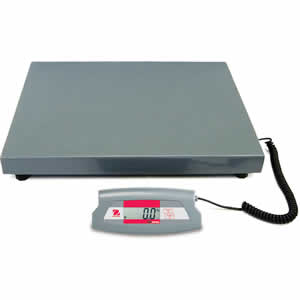

Ohaus SD75L Scale for Sale

Large 20.5" x 15.7" weighing platform sets the Ohaus SD75L apart from most of the others.  These floor scales also feature adjustable rubber feet which is not available in the similar SD75 model.  When calibrating the SD-75L shipping scale you can use either a 100 lb or 50 kg weight which is sold separately.

165 lb x 0.1 lb

Platform: 20.5" x 15.7"

Dynamic Animal Weighing

Price: $350.00

Ground S&H: $25.00

100 lb ASTM Class F Cast Iron Pipe Handle Weight (No Certificate) $330.00
50 kg ASTM Class F Cast Iron Pipe Handle Weight (No Certificate) $434.00

Ohaus SD75L is an inexpensive floor scale featuring a remote display.  It is the same as the SD75 except it features a larger weighing platform which does not have a treaded surface like the smaller model does.  If you do not require the bigger base, save on the smaller version.

The Ohaus SD Series is designed specifically with affordability, utility and everyday usage in mind. Ideal for home office, mail room, shipping and receiving, and general commercial and industrial dry weighing applications, the SD Series features a durable painted steel platform, a remote indicator with tactile function keys, battery operation and flexible mounting capability.  SD75L is your efficient solution to a variety of weighing needs, when you need it, where you need it.

Dynamic weighing software opens new opportunities in veterinary and laboratory use.  When weighing animals, movement may interfere with the actual weigh results, making them slightly inaccurate.  Dynamic weighing mode averages out weight readings over a period of time and displays the results.  This mode may be used when the scale is in a rough environment such as on a ship, or when in a location that may not have ideal conditions.  Utilizing this feature, the user can accurately weigh moving objects such as animals, insects or other moving specimens.

Standard Features:
  • Now with Dynamic weighing functionality
  • 3 capacities: 77 lb, 165 lb, 440 lb
  • 2 platform sizes: 12.4 x 11 inches and 20.5 x 15.7 inches
  • Maximum displayed resolutions from 1:1,750 to 1:2,200
  • ABS plastic indicator housing with reinforced ribs
  • Universal table/wall mounting brackets included
  • Flexible coiled cable, extendable to 108"
  • Rubber feet (adjustable on SD75L and SD200L models)
  • LCD with fast weight display in lb or kg
  • Raised tactile keys
  • AC adapter (included) or 360 hour battery operation with Auto Shut-Off feature
  • Calibration in lb or kg
  • 1 Year Limited Warranty
Weighing Applications:
  • SOHO/Corporate Shipping
  • General Industrial Use
  • Food service
  • Food Processing
  • Medical & Vet
  • Agriculture & Forestry

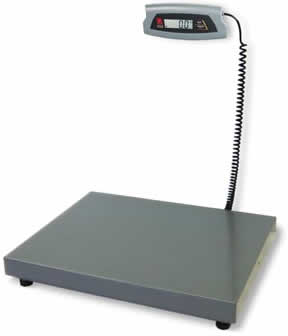

SD with Large Platform

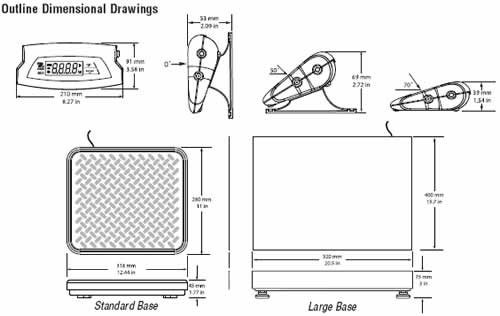

Ohaus SD-75L Dimensions
Ohaus SD Series - General Purpose Electronic Scales
Model Capacity Resolution Platform Size
SD35 77 lb 0.05 lb 12.4" x 11"
SD75 165 lb 0.1 lb 12.4" x 11"
SD75L 165 lb 0.1 lb 20.5" x 15.7"
SD200 440 lb 0.2 lb 12.4" x 11"
SD200L 440 lb 0.2 lb 20.5" x 15.7"
SD75L Electronic Platform Scale
Capacity x Resolution (lb) 165 lb x 0.1 lb
Capacity x Resolution (kg) 75 kg x 0.05 kg
Display resolution 1:1650
Weighing units lb, kg
Repeatability (Std. Dev.) 1d
Display 1-window LCD, 4-digit 0.8"
Keyboard 2 function raised tactile mechanical switches
Stabilization time (seconds) Within 3 seconds
Power Requirements 9V DC, 100 mA AC adapter, or (3)
Battery life (typical) 360 hours
Auto shut-off 4 minutes with no activity (battery operation only)
Safe overload capacity
(as percent of the rated load)
150%
Indicator included LxWxH 8.3" x 3.6" x 1.5"
Base Dimensions WxHxD 20.5" x 15.7"
Operating Temperature Range 5° to 40°C / 41° to 104°F
Shipping dimensions (WxDxH) (in) 24" x 19" x 9"
Net Wt. (lb/kg) 31 lb / 14 kg
Shipping Wt. (lb/kg) 36 lb / 16 kg
Calibration (not included) 100 lb / 50 kg
Features Cable length extendable 1.8m/72
Application Modes Weigh, Dynamic weighing
