TS-620 Balance

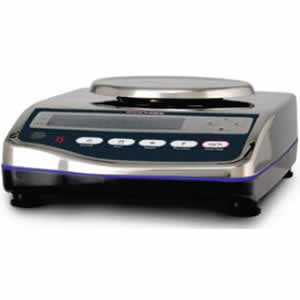

Rice Lake TS-620 Balance for Sale

Rice Lake TS Series tuning fork balances offer incredibly fast output and the ability to interface with a PC and other equipment is invaluable for creating compliance records and data storage.  The IP65 rating ensures it will handle a humid environment and small spills without damaging the electronics.

Regular Price: $1,035.00

Ground S&H: $10.00

Capacity x Resolution: 620 g x 0.01 g







Sleek looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out.

The polished finish of the TS Series’ stainless steel housing offers exceptional durability. An IP65 rating means this balance protects against the ingress of dust and liquids into electronic components that can happen from normal spills and splashes. Smooth, continuous lines of the TS design make cleanup effortless.

The mono-metal tuning fork sensor provides unrivaled stability with an extremely small margin of error. In this tiny device, experience sensitivity 50 times greater than that of any load cell.

Features:

  • Stainless Steel, IP65
  • Large 18 mm Liquid Crystal Display (LCD) with backlight
  • Selectable modes
  • 13 units of measurement
  • MMTS (Mono-Metal Tuning Fork Sensor) provides quick
    response and stability
  • 115 VAC adaptor included (230 VAC optional)
  • Semi-automatic calibration (external weight)
  • RS-232 bidirectional
Measurement Modes:
  • Weigh Mode - Toggle between two units of measurement
  • Piece Counting - Operates as a counting scale
  • Percentage Weighing - A sample is referenced to a 100% standard given
  • Density Measurement - With optional under hook
  • Unit Conversion - Converts values of 13 separate units of measurement
  • Cumulate Function - Adds samples to supply cumulative weight
  • Animal Weighing - Value is displayed after accounting for animal movement
  • Limit Function - References weight to stored limits
Optional Accessories:
  • Under-weigh hook
  • Waterproof RS-232 cable

Washdown RS232 Benefits

In many food-production facilities, weight values need to be recorded into a computer. This can be accomplished with an RS-232 feature that allows the scale to connect directly to a PC. But most scales with RS-232 aren’t designed to tolerate moist environments. Consequently, weighing in wet areas often means spending extra time manually collecting values and transposing them into a computer again later. Not only is this labor intensive and time consuming, but it opens the door for costly errors.

The Rice Lake TS Series balance brings together the benefits of an RS-232 interface with the
convenience and durability that comes with an IP65 rating.

The data stream from the TS Series to the PC is an ASCII serial string, easily interpreted by
many software programs. Sending the weight values directly from the balance to a PC:

  • Removes the extra step
  • Eliminates manual entry
  • Reduces errors
  • Eliminates need for paper
Rice Lake TS-620 Stainless Steel - Tuning Fork Balance
Capacity x Resolution (g) 620 g x 0.01 g
Units g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong),
tl (Singapore, Malaysia), tl (Taiwan), momme, tola
Platform Dimensions (diameter) 5.5" / 140 mm
Scale Dimensions 12.2" x 8.2" x 3.4" / 310 x 208 x 87 mm
Repeatability 0.01 g
Linearity (+/-) 0.01 g
RS232 9 pin D-sub male
Operating Temperature 32–104°F (0–40°C), 80% RH or less
Calibration External calibration weight
Weigh Sensor Tuning Fork
Display LCD with backlight
IP Rating IP65
Power 115 VAC adaptor included (230 VAC optional)
Warranty 5 Year Manufacturer's Limited Warranty
