AX2202/E Balance

Enlarge AX2202/E

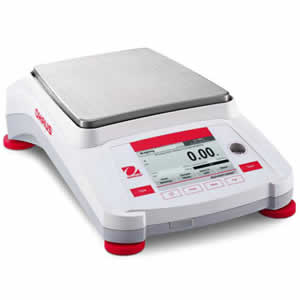

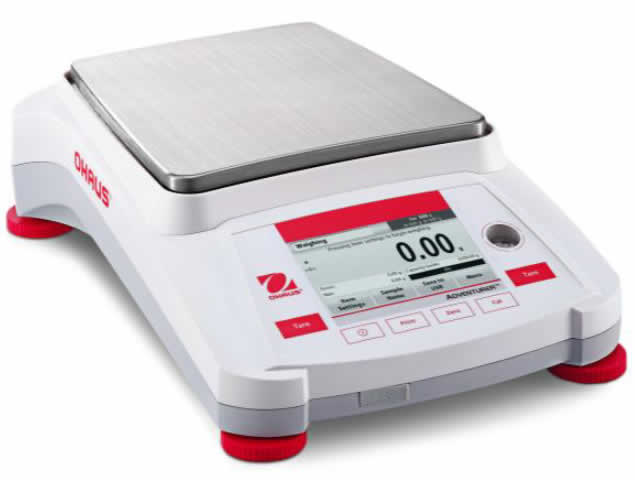

Ohaus AX2202/E Balance for Sale

Color touchscreen and connectivity options power a modern weighing experience with the Ohaus AX2202/E Adventurer balance.  Wide viewing angle color touchscreen provides quick access to all of Adventurer's applications, while dual USB ports with GLP/GMP tracking capabilities assist in the monitoring and reporting of data.

Regular Price: $1,147.50

Ground S&H: Free Shipping to USA (excludes AK and HI)

Capacity x Resolution: 2,200 g x 0.01 g







Ohaus Adventurer Accessories

SF40A Impact Printer with Cable $902.00
Paper for SF40A (1 roll) $17.00
Ink Ribbon for SF40A Printer $51.00
RS232 Cable, PC 9 Pin to Scale $176.00
RS232 Cable, PC 25 Pin to Scale $176.00
Density Determination Kit $708.00
Auxiliary Display Kit $65.00
Security Device $211.00

USB Jump Drive
Ohaus Balance Specifications
Model: Adventurer AX2202/E
Capacity (metric): 2,200 g
Readability (metric): 0.01 g
Repeatability (Std. Dev.): ± 0.01 g
Linearity: ± 0.02 g
Sensitivity Drift (ppm/°C): 3
Typical Min-weight: 20.0 g
Optimized Min-weight: 8.2 g
Weighing units: gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Application Modes: Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold
Tare range: To capacity by subtraction
Stabilization time: ≤1.5 seconds
Communication: RS232, USB Device, USB Host
Operating Temperature Range: 50°F to 86°F/10°C to 30°C
Power Requirements: AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz
AC Adapter Output: 12 VDC 0.84A
Calibration: External Calibration - See AX2202 for AutoCal
Display type: Full-Color Touchscreen WQVGA Graphic LCD
Display Size: 4.3" / 109 mm (diagonal)
Pan size (in/cm): 6.9" x 7.7" / 175 x 195 mm
Base Housing: 13.93" x 3.94" x 9.05" / 354 x 100 x 230 mm
Sensor Type: Electromagnetic Force Compensation
Net Weight: 10.2 lb / 4.6 kg
Shipping dimensions: 22.0" x 15.5" x 11.9" / 557 x 392 x 301 mm
Shipping Wt. (lb/kg): 14.4 lb / 6.5 kg
Graphic Display
Adventurer Precision Series
Model Capacity x Resolution Platform Size Calibration Price
AX1502/E 1,520 g x 0.01 g 6.9" x 7.7" External Only $1,294.55
AX1502 1,520 g x 0.01 g 6.9" x 7.7" Automatic Internal $1,533.40
AX2202/E 2,200 g x 0.01 g 6.9" x 7.7" External Only $1,467.10
AX2202 2,200 g x 0.01 g 6.9" x 7.7" Automatic Internal $1,713.60
AX4202/E 4,200 g x 0.01 g 6.9" x 7.7" External Only $1,725.50
AX4202 4,200 g x 0.01 g 6.9" x 7.7" Automatic Internal $1,983.90
AX5202 5,200 g x 0.01 g 6.9" x 7.7" Automatic Internal $2,164.95
