EX2202 Balance

Enlarge EX2202

Ohaus EX2202 Balance for Sale

Promo Code: OHAUSDEALS for 10% off
Take advantage of touchless sensors for hands free operation with the new Ohaus Explorer balance.  Intuitive graphic interface makes following weighing procedures easy to do with step by step guide.  Automatic internal calibration will make sure the toploading balance is properly calibrated daily, and also monitors temperature changes which prompts another calibration.  This ensures accuracy which is vital when weighing anything in the laboratory.

Regular Price: $2,422.50

Ground S&H: Free Shipping to USA (excludes AK and HI)

Capacity x Resolution: 2,200 g x 0.01 g







Accessories for Ohaus Explorer

Security Device for Explorer $211.00
USB Interface Cable $176.00
Ethernet Kit $176.00
Foot Switch Kit $168.00
SF40A Impact Printer with Cable $902.00

Product Manuals
Explorer User Manual Ohaus Explorer User Manual
Ohaus Explorer

Intelligent automatic internal calibration, AutoCal™ ensures performance and assists with routine
maintenance by automatically calibrating the balance daily.  AutoCal Self-calibrates the system when it senses a temperature change sufficient enough to affect weighing accuracy, or every 11 hours.  This eliminates the cost of external calibration weights, unless you choose to disable the feature and receive external calibration support.

Remote display can be separated from the base for angular adjustment to optimize viewing.  Additionally, there is a tower option which is ready for modular installation.  QuadrastanceTM design with four low resistance adjustable thumbwheels make the balance easy to level and provide superior stability.

Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. SmarText™ 2.0 is OHAUS’ easy-to-use graphical software featuring 14 applications, QWERTY and numeric keypads, and below-minimum weight indication.

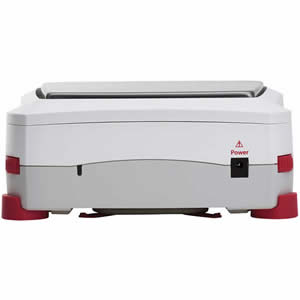

Display Rear

Explorer features four touchless sensors for hands-free operation of print, calibration, tare, and other selectable functions. AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily.

Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use. Explorer’s modular design features a color touch display that can be separated from the weighing base.

Level BubbleStandard Features:
  • Touchless Sensors - Hands-free operation
  • Fast stabilization time
  • Optimized linearity and repeatability specifications
  • Superior vibration filtering
  • Color VGA display with icons for simple menu navigation
  • 14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings
  • Minimum Weight capability with visual warning feature
  • QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
  • User Manager with administrator capability
  • Library function to store and recall customized applications
  • Alternate RS232 command feature adapts the balance to existing data acquisition software
  • External input for zero, tare or print operations via the external foot switch accessory
  • Audible and visual feedback for button presses as well as the indication of the check weighing status
Explorer EX10202


Ohaus Balance Specifications
Capacity x Resolution (g) 2,200 g x 0.01 g
Repeatability ± 0.01 g
Linearity ± 0.02 g
Weighing units Gram, Milligram, Kilogram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Custom Units
Application Modes: Weighing, Percent Weighing, Dynamic Weighing, Totalization, Differential Weighing, Peak Hold, Parts Counting, Pipette Adjustment, Check Weighing, Filling, Formulation, Density Determination, Ingredient Costing, SQC
Display Full-color VGA graphic display, 4-wire resistive touch screen
Display Size 5.7 in / 145 mm (diagonal)
Display Housing Dimensions 7.7 x 3.5 x 6.0 in / 195 x 90 x 154 mm
Base Housing Dimensions 9.1 x 3.9 x 15.5 in / 230 x 98 x 393 mm
Shipping Dimensions 21 x 15 x 12 in / 55 x 38.5 x 29.1 cm
Tare Range To capacity by subtraction
Stabilization time ≤1 second
Calibration AutoCal™ on Δ1.5°C temperature change, 11 hours, and external calibration
Communication RS232, USB
Platform Size 7.5 x 7.9 in / 190 x 200 mm
Operating Temperature 50°F (10°C) to 86°F (30°C)
Operating Humidity Range 15% to 80% at 87.8°F (31°C) decreasing linearly to 50% at 40°C, non-condensing
Storage Conditions -14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing
Sensor Type Electromagnetic Force Compensation
Power AC adapter input: 100-240 VAC 0.6A 50-60Hz
NET Weight 11 lb / 5 kg
Shipping Weight 16.3 lb / 7.4 kg
Explorer Display Features

The most Intelligent and intuitive balance to ever come from the mind of Ohaus, the all-new Explorer Series will improve efficiency, productivity and throughput by providing accurate results within seconds. Offering lab and industrial professionals a premium balance at an affordable price, Explorer is a revolutionary shift in the way users interact with and operate weighing equipment.

Key features include Ohaus' easy-to-use SmarText 2.0 graphical software that features 14 applications with customization capabilities, virtual QWERTY and numeric keypads, and below minimum weight indication. Explorer boasts four touchless sensors for 'hands free' operation, eliminating sample residue transfer and minimizing contamination.

Ohaus Explorer's leveling assistance and instructional messaging will guide you through quick out-of-the-box setup and use to easily integrate into weighing environments.

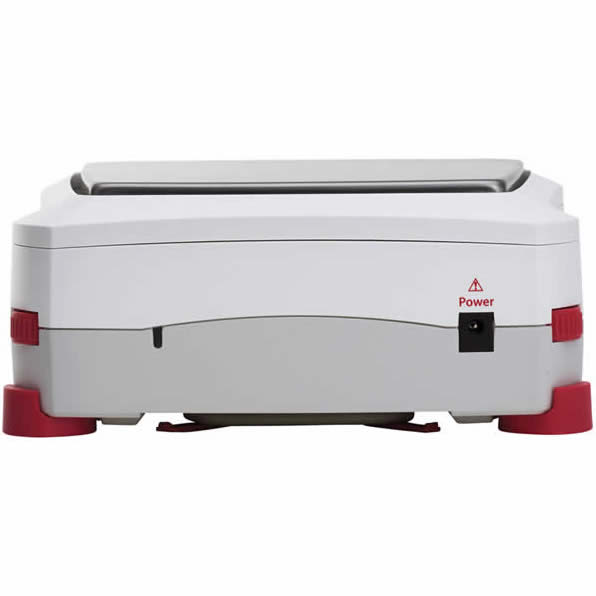

Rear Explorer Precision
Ohaus Explorer Series - Add To Shopping Cart to See Lower Pricing
Model Cap x Res (Grams) Pan Size Calibration Type Reg Price
EX124 120 g x 0.0001 g 3.5" diameter AutoCal - Internal $3,415.30
EX224 220 g x 0.0001 g 3.5" diameter AutoCal - Internal $3,795.25
EX324 320 g x 0.0001 g 3.5" diameter AutoCal - Internal $4,459.95
EX223 220 g x 0.001 g 5.1" diameter AutoCal - Internal $2,236.35
EX223/E 220 g x 0.001 g 5.1" diameter External Only $1,921.00
EX423 420 g x 0.001 g 5.1" diameter AutoCal - Internal $2,616.30
EX423/E 420 g x 0.001 g 5.1" diameter External Only $2,327.30
EX623 620 g x 0.001 g 5.1" diameter AutoCal - Internal $3,199.40
EX1103 1,100 g x 0.001 g 5.1" diameter AutoCal - Internal $3,756.15
EX2202 2,200 g x 0.01 g 7.5" x 7.9" AutoCal - Internal $2,422.50
EX2202/E 2,200 g x 0.01 g 7.5" x 7.9" External Only $2,094.40
EX4202 4,200 g x 0.01 g 7.5" x 7.9" AutoCal - Internal $2,784.60
EX4202/E 4,200 g x 0.01 g 7.5" x 7.9" External Only $2,443.75
EX6202 6,200 g x 0.01 g 7.5" x 7.9" AutoCal - Internal $3,160.30
EX6202/E 6,200 g x 0.01 g 7.5" x 7.9" External Only $2,801.60
EX10202 10,200 g x 0.01 g 7.5" x 7.9" AutoCal - Internal $3,751.90
EX6201 6,200 g x 0.1 g 7.5" x 7.9" AutoCal - Internal $2,624.80
EX6201/E 6,200 g x 0.1 g 7.5" x 7.9" External Only $2,244.85
EX10201 10,200 g x 0.1 g 7.5" x 7.9" AutoCal - Internal $2,879.80
