Defender 5000 Low Profile
Defender 5000 Low Profile
Defender 5000 Low Profile
Defender 5000 Low Profile

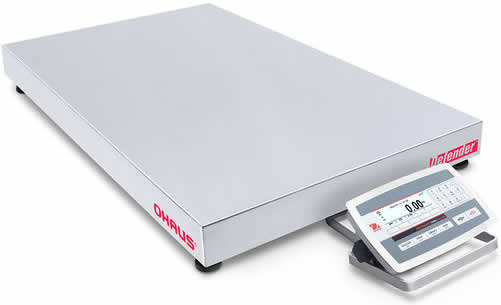

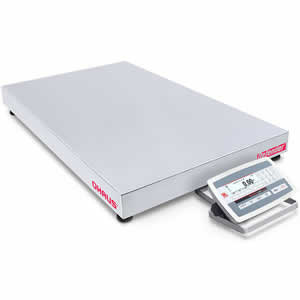

Ohaus D52XW125RTV5 Scale for Sale

Stainless Steel Indicator
Large rectangular platform on the Ohaus D52XW125RTV5 is the largest available in the Defender 5000 Low Profile series.  It comes with a front mounted TD52XW stainless steel indicator that is sealed from water and dust.  Oversized base is constructed from powder coated steel and intended for dry environments.  Built in library can store 50,000 product ids and 1,000 user profiles that are granted admin, supervisor or operator priveleges.

250 lb x 0.01 lb

Platform: 23.6" x 31.5"

Price: $2,182.50

Ground S&H: Free Shipping to USA (excludes AK and HI)

Accessories for Next Generation Defender 5000

In-use Cover Kit, TD52XW $27.00
In-use Cover set (10), TD52XW $215.00
Micro SD Card, 8G $55.00
Second RS232/RS485/USB Kit, TD52 $155.00
Ethernet Kit $155.00
SF40A Impact Printer with Cable $902.00

Multifunctional Bench Scale for Standard Industrial Applications
OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Simplified Use
Results can be read easily on the Defender 5000’s large transflective dot matrix display, even in bright sunlight. The SmarText 3.0 interface will guide you through all of the Defender 5000’s unique and advanced features. With five soft keys, SmartText 3.0 makes an advanced scale very simple to use, and reduces training time for operators.

Durable Construction
Defender 5000 can be used for both general and legal-for-trade applications. For standard industrial applications, the Defender 5000 bench scales offer durable performance at a practical price.

Simple Operation
Featuring most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold, the Defender 5000 meets the weighing and measurement needs of practically every industrial application or manufacturing process. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with time/date allows for traceability of results.

Equipped with the included Micro SD card, the Defender 5000 can support storage of up to 50,000 items and 1,000 user profiles. Weighing results can also be stored in Alibi or regular format, addressing all your data storage needs.

Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port. Additional connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/Bluetooth interfaces.

Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete I/O, the new Defender 5000 indicator can also be used for systems including PLCs.

Standard Features:

  • Indicator Guides The User with On-Screen Prompts
    See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments
    Durably constructed with a stainless steel platform, silver-painted column, and aluminum load cell. Supports up to 6,250e NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility
    Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage
    Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.
  • Includes T52XW Indicator
    IP68 rated / NEMA 4x rated protection with housing made from 304 stainless steel with sand blasted surface treatment and stainless steel bracket.

Ohaus Defender 5000 Low Profile Series with TD52XW S.S. Indicator
Model Cap. x Read. NTEP Readability Platform Size Regular Price
D52XW12RQR5 25 lb × 0.001 lb
12.5 kg × 0.5 g
0.005 lb / 2 g 12" x 12" $1,347.30
D52XW25RQR5 50 lb × 0.002 lb
25 kg × 1 g
0.01 lb / 5 g 12" x 12" $1,347.30
D52XW50RQR5 100 lb × 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 12" x 12" $1,347.30
D52XW12RTR5 25 lb × 0.001 lb
12.5 kg × 0.5 g
0.005 lb / 2 g 12" x 14" $1,394.10
D52XW25RTR5 50 lb × 0.002 lb
25 kg × 1 g
0.01 lb / 5 g 12" x 14" $1,394.10
D52XW50RTR5 100 lb × 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 12" x 14" $1,394.10
D52XW50RQL5 100 lb × 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 18" x 18" $1,606.50
D52XW125RQL5 250 lb × 0.01 lb
125 kg × 5 g
0.05 lb / 20 g 18" x 18" $1,606.50
D52XW50RTX5 100 lb × 0.005 lb
50 kg × 2 g
0.02 lb / 10 g 18" x 24" $1,701.00
D52XW125RTX5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 18" x 24" $1,701.00
D52XW250RTX5 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 18" x 24" $1,701.00
D52XW50RQV5 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb / 10 g 24" x 24" $1,795.50
D52XW125RQV5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 24" x 24" $1,795.50
D52XW250RQV5 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb / 50 g 24" x 24" $1,795.50
D52XW125RTV5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb / 20 g 31.5" x 23.6" $2,126.70

Defender 5000 D52XW125RTV5 Specifications
Capacity x Readability (lb) 250 lb x 0.01 lb
Capacity x Readability (kg) 125 kg x 5 g
Max. Displayed Resolution 1:25,000
Capacity x Readability
(NTEP lb)
250 lb x 0.05 lb
Capacity x Readability
(NTEP kg)
125 kg x 20 g
Min APW (grams) 1 g
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52XW Stainless Steel Indicator
Mount Stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform, powder-coated steel base construction, aluminum loadcell silicon-sealed against moisture
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14°F to 104°F / -10°C to 40°C
D52XW Scale Dimensions
(B x A x C x D x E x F)
31.5 x 23.6 x 5.2 x 3.5 x 4.6 x 42.1 in
800 x 600 x 132 x 90 x 118 x 1070 mm
Shipping Dimensions
(L × W × H)
45.9 x 30.7 x 9.25 in
1165 x 780 x 235 mm
Approx. Net Weight 94.5 lb / 43 kg
Approx. Shipping Weight 103.6 lb / 47 kg
Indicator Construction 304 stainless steel with sand blasting surface treatment
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional)
Battery Life 20 hours of continuous use
Calibration Zero, Span or 3 point-Linear
Warranty 1 Year Manufacturer's Warranty
