Washdown

Ohaus D52XW250WTX5 Scale for Sale

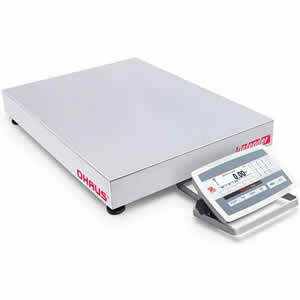

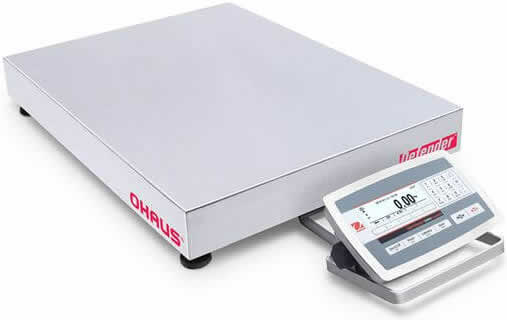

Ohaus D52XW250WTX5 is a legal for trade bench scale with washdown protection for use in wet and messy environments.  It is constructed from stainless steel from the base frame to the indicator and has a silicon sealed stainless steel loadcell.  RS232 comes standard with an option to install an additional interface card.  MicroSD card is included and is required to store the library data on.  Up to 50,000 items and 1,000 user profiles fit on the chip.

500 lb x 0.02 lb

Platform: 18" x 24"

Washdown and Dust Tight

Price: Lowest Price in Cart

Ground S&H: $325.00

Accessories for Defender 5000 Washdown

In-use Cover Kit, TD52XW $27.00
In-use Cover set (10), TD52XW $215.00
Micro SD Card, 8G $55.00
Second RS232/RS485/USB Kit, TD52 $155.00
Ethernet Kit $155.00
SF40A Impact Printer with Cable $1,070.00

TO ENSURE BEST POSSIBLE DISCOUNT REQUEST A QUOTE TODAY!!!

Multifunctional Stainless Steel Washdown Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Simplified Use
Results can be read easily on the Defender 5000’s large transflective dot matrix display, even in bright sunlight. The SmarText 3.0 interface will guide you through all of the Defender 5000’s unique and advanced features. With five soft keys, SmartText 3.0 makes an advanced scale very simple to use, and reduces training time for operators.

Durable Construction
The Defender 5000 can be used for both general and legal-for-trade applications. For standard industrial applications, the Defender 5000 bench scales offer durable performance at a practical price.

Simple Operation
Featuring most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold, the Defender 5000 meets the weighing and measurement needs of practically every industrial application or manufacturing process. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with time/date allows for traceability of results.

Equipped with the included Micro SD card, the Defender 5000 can support storage of up to 50,000 items and 1,000 user profiles. Weighing results can also be stored in Alibi or regular format, addressing all your data storage needs.

Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port. Additional connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/ Bluetooth interfaces.

Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete I/O, the new Defender 5000 indicator can also be used for systems including PLCs.

Standard Features:

  • Indicator Guides The User with On-Screen Prompts
    See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments
    Durably constructed with a stainless steel platform, frame, indicator front mount, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility
    Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD card. Also equipped with GMP/GLP capability with time/date for result traceability.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage
    Results can be stored in the MicroSD card. Data output by built-in RS232 or optional interfaces including 2nd RS232/485/USB Device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Ohaus Defender 5000 Washdown Low Profile Stainless Steel Series
Model Cap. x Read. NTEP Read. Platform
D52XW2WQS5 5 lb x 0.0002 lb
2.5 kg x 0.1 g
0.001 lb
0.5 g
10" x 10"
D52XW5WQS5 10 lb x 0.0005 lb
5 kg x 0.2 g
0.002 lb
1 g
10" x 10"
D52XW12WQS5 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb
5 g
10" x 10"
D52XW12WQR5 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb
5 g
12" x 12"
D52XW25WQR5 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb
5 g
12" x 12"
D52XW50WQR5 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
12" x 12"
D52XW25WQL5 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb
5 g
18" x 18"
D52XW50WQL5 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
18" x 18"
D52XW125WQL5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb
50 g
18" x 18"
D52XW50WTX5 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
18" x 24"
D52XW125WTX5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb
50 g
18" x 24"
D52XW250WTX5 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb
50 g
18" x 24"
D52XW50WQV5 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
24" x 24"
D52XW125WQV5 250 lb x 0.01 lb
125 kg x 5 g
0.05 lb
50 g
24" x 24"

Defender 5000 Washdown Low Profile D52XW250WTX5 Specifications
Capacity x Readability (lb) 500 lb x 0.02 lb
Capacity x Readability (kg) 250 kg x 10 g
Max. Displayed Resolution 1:25,000
Capacity x Readability
(NTEP lb)
500 lb x 0.1 lb
Capacity x Readability
(NTEP kg)
250 kg x 50 g
Min APW (grams) 0.5 g
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52XW Stainless Steel Indicator
Mount Stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon-sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)
24 x 18 x 5.1 x 3.5 x 4.6 x 34.9 in
610 x 457 x 130 x 90 x 118 x 887 mm
Shipping Dimensions
(L × W × H)
39.1 x 26.8 x 9.25 in
994 x 680 x 235 mm
Approx. Net Weight 61.7 lb / 28 kg
Approx. Shipping Weight 68.4 lb / 31 kg
Indicator Construction 304 stainless steel with sand blasting surface treatment
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional)
Battery Life 20 hours of continuous use
Calibration Zero, Span or 3 point-Linear
Warranty 1 Year Manufacturer's Warranty
