HomeWashdown ScalesOhaus › Defender 5000 Washdown D52XW250WTX7
Defender 5000 Washdown
Defender 5000 Washdown
Defender 5000 Washdown
Defender 5000 Washdown

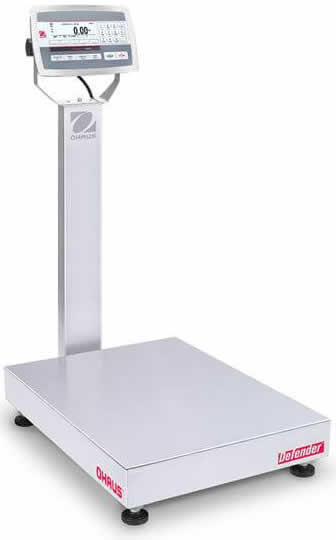

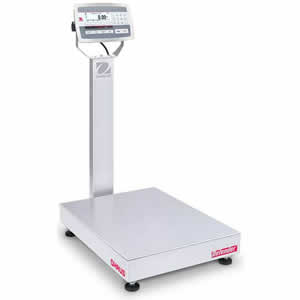

Ohaus D52XW250WTX7 Scale for Sale

Washdown and Dust Tight
Stainless steel construction on the Defender 5000 Washdown D52XW250WTX7 makes for a very durable and well constructed scale.  It is legal for trade with a maximum weighing capacity of 500 hundred pounds.  RS232 is a standard feature with an option to install other types of connectivity including Ethernet, WiFi and Bluetooth.  It is suitable for wet environments or applications that require a rugged water resistant scale.  MicroSD card can store up to 50,000 library items and 1,000 user profiles which are granted permissions based on administrator supervisor or operator status.

500 lb x 0.02 lb

Platform: 18" x 24"

Price: $2,315.70

Ground S&H: Free Shipping to USA (excludes AK and HI)

Accessories for Defender 5000 Washdown

In-use Cover Kit, TD52XW $27.00
In-use Cover set (10), TD52XW $215.00
Micro SD Card, 8G $55.00
Second RS232/RS485/USB Kit, TD52 $155.00
Ethernet Kit $155.00
SF40A Impact Printer with Cable $902.00

Multifunctional Bench Scale for Standard Industrial Applications
The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management, and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Simplified Use
Results can be read easily on the Defender 5000’s large transflective dot matrix display, even in bright sunlight. The SmarText 3.0 interface will guide you through all of the Defender 5000’s unique and advanced features. With five soft keys, SmartText 3.0 makes an advanced scale very simple to use, and reduces training time for operators.

Durable Construction
The Defender 5000 can be used for both general and legal-for-trade applications. For standard industrial applications, the Defender 5000 bench scales offer durable performance at a practical price.

Simple Operation
Featuring most common applications including Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold, the Defender 5000 meets the weighing and measurement needs of practically every industrial application or manufacturing process. Many application modes eliminate the need for long and complicated manual calculations. GMP/GLP with time/date allows for traceability of results.

Equipped with the included Micro SD card, the Defender 5000 can support storage of up to 50,000 items and 1,000 user profiles. Weighing results can also be stored in Alibi or regular format, addressing all your data storage needs.

Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port. Additional connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/Bluetooth interfaces.

Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete I/O, the new Defender 5000 indicator can also be used for systems including PLCs.

Standard Features:

  • Indicator Guides The User with On-Screen Prompts
    See results clearly on the large backlit display. The alpha-numeric keypad and function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
  • Durably Constructed To Withstand Harsh Industrial Environments
    Durably constructed with a stainless steel platform, frame, column, IP67 loadcell and IP68/NEMA4X indicator. Supports up to 5,000d NTEP and Measurement Canada certified resolution for legal-for-trade applications.
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility
    Features common industrial modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded/uploaded for easy set-up with the included Micro SD Card. Also equipped with GLP/GMP output capability with time/date for result traceability. Alibi memory available.
  • Multiple Connectivity Options for Convenient Data Transfer and Storage
    Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including 2nd RS232/RS485/USB device, Ethernet, Bluetooth/WiFi, Analog Output and Discrete I/O with relays.

Ohaus Defender 5000 Washdown Stainless Steel Series
Model Cap. x Read. NTEP Read. Platform Regular Price
D52XW2WQS6 5 lb x 0.0002 lb
2.5 kg x 0.1 g
0.001 lb
0.5 g
10" x 10" $1,370.70
D52XW5WQS6 10 lb x 0.0005 lb
5 kg x 0.2 g
0.002 lb
1 g
10" x 10" $1,370.70
D52XW12WQS6 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb
5 g
10" x 10" $1,370.70
D52XW12WQR6 25 lb x 0.001 lb
12.5 kg x 0.5 g
0.005 lb
5 g
12" x 12" $1,534.50
D52XW25WQR6 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb
5 g
12" x 12" $1,534.50
D52XW50WQR6 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
12" x 12" $1,488.60
D52XW25WQL7 50 lb x 0.002 lb
25 kg x 1 g
0.01 lb
5 g
18" x 18" $2,107.80
D52XW50WQL7 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
18" x 18" $2,173.50
D52XW125WQL7 250 lb x 0.01 lb
125 kg x 5 g
0.005 lb
2 g
18" x 18" $2,173.50
D52XW50WTX7 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
18" x 24" $2,315.70
D52XW125WTX7 250 lb x 0.01 lb
125 kg x 5 g
0.005 lb
2 g
18" x 24" $2,389.50
D52XW250WTX7 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb
50 g
18" x 24" $2,315.70
D52XW50WQV8 100 lb x 0.005 lb
50 kg x 2 g
0.02 lb
10 g
24" x 24" $2,693.70
D52XW125WQV8 250 lb x 0.01 lb
125 kg x 5 g
0.005 lb
2 g
24" x 24" $2,776.50
D52XW250WQV8 500 lb x 0.02 lb
250 kg x 10 g
0.1 lb
50 g
24" x 24" $2,875.50
D52XW500WQV8 1,000 lb x 0.05 lb
500 kg x 20 g
0.2 lb
100 g
24" x 24" $2,788.20

Defender 5000 D52XW250WTX7 Specifications
Capacity x Readability (lb) 500 lb x 0.02 lb
Capacity x Readability (kg) 250 kg x 10 g
Max. Displayed Resolution 1:25,000
Capacity x Readability
(NTEP lb)
500 lb x 0.1 lb
Capacity x Readability
(NTEP kg)
250 kg x 50 g
Min APW (grams) 0.5 g
Internal Counting Resolution 1:500,000
Linearity/Repeatability ± 2d
Indicator TD52XW Stainless Steel Indicator
Column 26.8 in / 680 mm stainless steel
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temp. Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions
(A x B x C x D x E x F)
24 x 18 x 5.1 x 3.5 x 36.8 x 30.5 in
610 x 457 x 130 x 90 x 934 x 775 mm
Shipping Dimensions
(L × W × H)
39.1 x 26.8 x 9.25 in
994 x 680 x 235 mm
Approx. Net Weight 68.4 lb / 31 kg
Approx. Shipping Weight 72.8 lb / 33 kg
Indicator Construction 304 stainless steel with sand blasting surface treatment
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application Modes Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, Analog Output, 2 In/4 Out Discrete I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional)
Battery Life 20 hours of continuous use
Calibration Zero, Span or 3 point-Linear
Warranty 1 Year Manufacturer's Warranty
