HomeHigh Capacity BalancesOhaus › Explorer EX24001
Explorer High Capacity

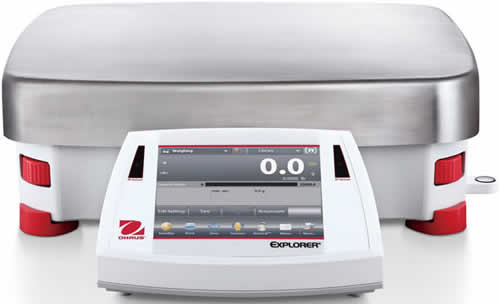

Ohaus EX24001 Balance for Sale

Ohaus EX24001 from the Explorer High Capacity series is loaded with different features, modes and supported units of measure to complete any number of weighing tasks.  Extra large platform and force restoration load cell come in handy for liquid filling or weighing concrete with precision.  EX24001 includes automatic internal calibration to ensure accurate and repeatable results with every measure.

24,000 g x 0.1 g

Platform: 14.8" x 12.2"

Auto Internal Cal.

Price: Lowest Price in Cart

Ground S&H: $50.00

Accessories for High Capacity Explorer Balances

External Battery $353.00
Rolling Feet Kit $151.00
Tower Kit $139.00
Anti Theft Kit $211.00
SF40A Impact Printer with Cable $1,295.00
TAL Software WinWedge $482.00


Product Manuals
Explorer User Manual Ohaus Explorer User Manual

Explorer series now includes three high-capacity precision models with capacities up to 35 kg. New high-capacity balances offer the same intuitive features, such as AutoCal™ and 1 second stabilization time, with additional functions and attributes to support higher capacity weighing applications.

Standard Features:

  • Fully-automatic internal calibration system
  • Self-calibrates the system when it senses a temperature change sufficient enough to affect weighing accuracy, or every 11 hours
  • Explorer features up to four touchless sensors for hands-free operation of zero, print, calibration, tare, automated draftshield doors and other selectable functions
  • SmarText™ 2.0 is OHAUS’ easy-to-use graphical software featuring 14 applications, virtual QWERTY and numeric keypads, and below-minimum weight indication.
  • Library function to store and recall customized applications
  • Audible and visual feedback for touch screen input commands as well as the indication of the check weighing status
  • Data Transfer Function helps to output data directly into Microsoft Excel
  • With a die-cast metal base and a 14.8" × 12.2" ( 377 × 311mm) stainless steel pan, the Explorer High Capacity is built to withstand rugged, every day use.
  • 2-D Protection prevents shock and damage associated with movement and forces applied to the balance
  • IP54 base enclosure protects the weighing base from damage by debris, humidity and accidental spills and splashes. (High Capacity models only)

High Capacity Ohaus Explorer
Ohaus Explorer Series - High Capacity Precision Balances
Model Cap x Res (Grams) Calibration Type Pan Size
EX12001 12,000 g x 0.1 g Internal Calibration 14.8" x 12.2"
EX24001 24,000 g x 0.1 g Internal Calibration 14.8" x 12.2"
EX35001 35,000 g x 0.1 g Internal Calibration 14.8" x 12.2"
Explorer EX24001 Specifications
Capacity x Resolution (g) 24,000 g x 0.1 g
Capacity x Resolution (lb) 52 lb x 0.0005 lb
Repeatability ± 0.1 g
Linearity ± 0.2 g
Sensitivity Drift PPM/°C 3
Typical Min. Weight 210 g (USP, K=3, U=0.1%)
Weighing units g, kg, ct, gn, lb, oz, ozt, N, dwt, hkt, sgt, twt, mom, tical, msg, tola, and 3 custom units
Display Full color VGA graphic display, 4 wire resistive touch screen
Display Size 5.7" / 145 mm (diagonal)
Tare Range To capacity by subtraction
Stabilization time ≤ 1 second
Legal for Trade No - See EX24001N for NTEP Approval
Calibration AutoCal - fully automatic internal calibration system
Communication Standard RS232 and USB / Optional Ethernet or 2nd RS232
Display Housing 7.68" x 3.54" x 6.06"
Base Dimensions 14.84" x 4.72" x 17.44"
Platform Size 14.8" x 12.2" x 4.72"
Operating Temperature 50°F to 86°F / 10°C to 30°C
Sensor Type Electromagnetic Force Compensation
Shipping Weight 25.8 lb / 12.5 kg
Net Weight 22 lb / 10 kg
