R71MHD35 Scale

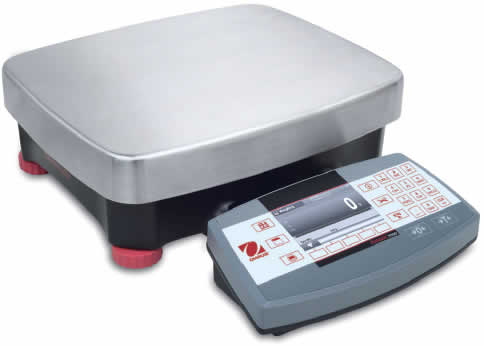

Enlarge R71MHD35

Ohaus R71MHD35 Scale for Sale

Promo Code: OHAUSDEALS for 10% off
R71MHD35 is the premium choice for precision in an industrial environment.  Ohaus Ranger 7000 can accomplish weighing tasks efficiently and accurately using the Mettler Toledo Monobloc sensor, the MFR version for rugged use.  Functions are included to not only count parts and checkweigh batches, but you can store this data in up to 300 memory locations.  Formulation provides a separate memory for up to 30 items.

Regular Price: $3,854.40

Ground S&H: Free Shipping to USA (excludes AK and HI)

Capacity x Resolution: 70 lb x 0.0002 lb






SF40A Impact Printer with Cable $902.00
Ethernet Kit $139.00
2nd RS232 Kit $139.00
Painted Column Kit $139.00
Discrete I/O Kit $139.00
Remote Base Kit (for using 2nd platform) $140.00
Cable Extension (9 meters) $98.00


User Manual User Manual

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

Ohaus Ranger 7000 has ten advanced application modes for a variety of complex applications which minimize the need for manual calculations, and can also control peripheral devices and/or a scale platform with option kit. With a one second stabilization time, up to 75,000d or 350,000d display resolution and legal for trade certifications you are provided with precision that cannot be matched by any other industrial scale in its class. Ranger 7000 was developed to thrive in rugged and harsh environments. Modular scale was built with IP54 cast metal housing and sealed metal indicator to ensure durability. With SmarText 2.0 software and a 4.3 inch graphic display, the advanced functionality it is simple to use with minimal training.

Application Modes:

  • Weighing
    Determine the weight of items in the selected unit of measure.
  • Density Determination
    Determine density of solids. With the weigh below hook, it’s possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan.
  • Filling
    Fill a container to a target weight. Progress bar displays filling status. Connect with Discrete I/O option kit for auto-filling system.
  • Differential Weighing
    Calculate the difference between sample weights and initial weights.
  • Parts Counting
    Count samples of uniform weight. Advanced autooptimization software recalculates the average piece weight as the overall weight increases.
  • Dynamic Weighing
    Weigh an unstable load. Scale takes an average of weights over a period of time. *A Display Hold feature manually or automatically holds the last stable weight on the display. (Activated by setting time interval of Dynamic Weighing to zero.).
  • Formulation
    For compounding and recipe making. Available “compensation mode” which enables recalculation in case component added is outside the tolerance.
  • Check Weighing/Counting
    Compare the weight/count of a sample against target limits. Connect with Discrete I/O option kit for external check lights.
  • Percent Weighing
    Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight.

Ohaus Ranger 7000 R71MHD35 - Precision Compact Scale
Capacity x Readability (lb) 70 lb x 0.0002 lb
Capacity x Readability (oz) 1,120 oz x 0.005 oz
Capacity x Readability (kg) 35 kg x 0.0001 kg
Capacity x Readability (g) 35,000 g x 0.1 g
NTEP POUNDS 70 lb x 0.002 lb
NTEP OUNCES 1,120 oz x 0.05 oz
NTEP KILOGRAMS 35 kg x 0.001 kg
NTEP GRAMS 35,000 g x 1 g
Weighing Units kg, g, lb, oz, lb:oz
Application Modes Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling, Formulation, Differential Weighing, Density Weighing
Display 4.3" TFT Graphic LCD
Keypad 8 function, 5 quick, 12 numeric membrane keys
Construction Stainless Steel Platform, Die Cast Housing
Ingress Protection IP54
Stabilization Time 1 second
Zeroing Range 2% or 10% of Capacity
Safe Overload Capacity 150% of capacity
Interface Standard RS232, USB Device, USB Host
Optional Interfaces Ethernet, 2nd RS232, Remote Base, 2 In/4 Out digital I/O
Power 100-240 VAC / 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional)
Display Dimensions 267 x 118 x 72 mm / 10.5 x 4.6 x 2.8 in
Max Displayed Resolution 1:150,000
Certified Resolution 1:15,000
Linearity/Repeatability ±2 d
Base Housing Dimensions (WxDxH) 14.9" × 12.2" × 5" / 377 × 311 × 128 mm
Platform Dimensions (WxDxH) 14.8" × 12.2" × 1.9" / 377 × 311 × 48 mm
Net Weight 24 lb / 10.9 kg
Shipping Weight 31.7 lb / 14.4 kg
Shipping Dimensions 26.2" × 20.7" × 13" / 665 × 525 × 330 mm
Calibration InCal™ internal calibration, Span or Linear
Sensor Type Electromagnetic Force Compensation
Battery Life 12 hours continuous use

Ohaus Ranger 7000 Series - Compact Precision Bench Scales
Model Capacity x Readability Platform Size Price
R71MD3 6 lb x 0.0001 lb 11" x 11" $1,248.80
R71MD6 15 lb x 0.0002 lb 11" x 11" $1,248.80
R71MD15 30 lb x 0.0005 lb 14.8" x 12.2" $1,248.80
R71MD35 70 lb x 0.001 lb 14.8" x 12.2" $1,248.80
R71MHD3 6 lb x 0.00002 lb 9.4" x 9.4" $1,952.00
R71MHD6 15 lb x 0.00005 lb 9.4" x 9.4" $2,164.80
R71MHD15 30 lb x 0.0002 lb 14.8" x 12.2" $2,881.60
R71MHD35 70 lb x 0.0002 lb 14.8" x 12.2" $3,476.00
