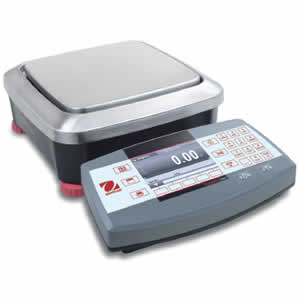

Ohaus R71MHD6 Balance for Sale

Ranger 7000 R71MHD6 features Mettler Toledo's Monobloc sensor for high precision MFR weighing capable of performing liquid filling housed in die-cast base for industrial environments. Store up to 30 formulation procedures for recipe making and the Ranger 7000 can separetly store 300 items into memory for counting, filling and checkweighing.

6,000 g x 0.02 g

Platform: 9.4" x 9.4"

High Resolution Version

Price: Lowest Price in Cart

Ground S&H: $35.00

Product Description
Specifications
Return Policy

User Manual

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

Ohaus Ranger 7000 has ten advanced application modes for a variety of complex applications which minimize the need for manual calculations, and can also control peripheral devices and/or a scale platform with option kit. With a one second stabilization time, up to 75,000d or 350,000d display resolution and legal for trade certifications you are provided with precision that cannot be matched by any other industrial scale in its class. Ranger 7000 was developed to thrive in rugged and harsh environments. Modular scale was built with IP54 cast metal housing and sealed metal indicator to ensure durability. With SmarText 2.0 software and a 4.3 inch graphic display, the advanced functionality it is simple to use with minimal training.

Application Modes:

Weighing
Determine the weight of items in the selected unit of measure.
Density Determination
Determine density of solids. With the weigh below hook, it’s possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan.
Filling
Fill a container to a target weight. Progress bar displays filling status. Connect with Discrete I/O option kit for auto-filling system.
Differential Weighing
Calculate the difference between sample weights and initial weights.
Parts Counting
Count samples of uniform weight. Advanced autooptimization software recalculates the average piece weight as the overall weight increases.
Dynamic Weighing
Weigh an unstable load. Scale takes an average of weights over a period of time. *A Display Hold feature manually or automatically holds the last stable weight on the display. (Activated by setting time interval of Dynamic Weighing to zero.).
Formulation
For compounding and recipe making. Available “compensation mode” which enables recalculation in case component added is outside the tolerance.
Check Weighing/Counting
Compare the weight/count of a sample against target limits. Connect with Discrete I/O option kit for external check lights.
Percent Weighing
Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight.

Ohaus Ranger 7000 Series - Precision Bench Scales
Model	Capacity x Readability	Platform Size	Price
R71MD3	6 lb x 0.0001 lb	11" x 11"	$1,536.00
R71MD6	15 lb x 0.0002 lb	11" x 11"	$1,536.00
R71MD15	30 lb x 0.0005 lb	14.8" x 12.2"	$1,536.00
R71MD35	70 lb x 0.001 lb	14.8" x 12.2"	$1,536.00
R71MHD3	6 lb x 0.00002 lb	9.4" x 9.4"	$2,412.00
R71MHD6	15 lb x 0.00005 lb	9.4" x 9.4"	$2,684.00
R71MHD15	30 lb x 0.0002 lb	14.8" x 12.2"	$3,548.00
R71MHD35	70 lb x 0.0002 lb	14.8" x 12.2"	$4,276.00

Ranger 7000 R71MHD6 - Precision Compact Bench Scale
Capacity x Readability (lb)	15 lb × 0.00005 lb
Capacity x Readability (oz)	240 oz × 0.001 oz
Capacity x Readability (kg)	6 kg × 0.00002 kg
Capacity x Readability (g)	6,000 g × 0.02 g
NTEP POUNDS	15 lb × 0.0005 lb
NTEP OUNCES	240 oz × 0.01 oz
NTEP KILOGRAMS	6 kg × 0.0002 kg
NTEP GRAMS	6,000 g × 0.2 g
Weighing Units	kg, g, lb, oz, lb:oz
Application Modes	Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling, Formulation, Differential Weighing, Density Weighing
Display	4.3" TFT Graphic LCD
Keypad	8 function, 5 quick, 12 numeric membrane keys
Construction	Stainless Steel Platform, Die Cast Housing
Ingress Protection	IP54
Stabilization Time	1 second
Zeroing Range	2% or 10% of Capacity
Safe Overload Capacity	150% of capacity
Interface	Standard RS232, USB Device, USB Host
Optional Interfaces	Ethernet, 2nd RS232, Remote Base, 2 In/4 Out digital I/O
Power	100-240 VAC / 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional)
Display Dimensions	267 x 118 x 72 mm / 10.5 x 4.6 x 2.8 in
Max Displayed Resolution	1:300,000
Certified Resolution	1:30,000
Linearity/Repeatability	±2 d
Base Housing Dimensions (WxDxH)	280 × 280 × 114 mm 11 × 11 × 4.5 in
Platform Dimensions (WxDxH)	240 × 240 × 15 mm 9.4 × 9.4 × 0.6 in
Net Weight	7.2 kg / 16 lb
Shipping Weight	9.2 kg / 20.3 lb
Shipping Dimensions	605 × 405 × 244 mm / 23.8 × 15.9 × 9.6 in
Calibration	InCal™ internal calibration, Span or Linear
Sensor Type	Electromagnetic Force Compensation
Battery Life	12 hours continuous use
